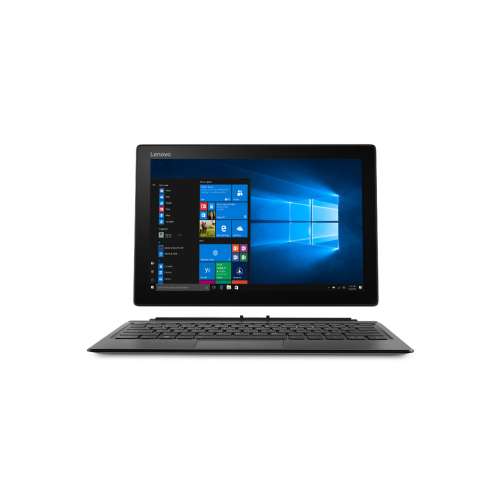

Lenovo Miix 520 Business Editon i7-8550U Hybrid (2-in-1) 31 cm (12.2 Zoll) Touchscreen WUXGA Intel® Core™ i7 16 GB DDR4-SDRAM 1000 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Grau

Hersteller-Nr.: 20M3000LGE
Markteinführung: 11/2017
Produktserie: Lenovo Miix 500
Hersteller: Lenovo

Intel® Core™ i7 i7-8550U16 GB RAM1000 GB SSD 31 cm (12.2 Zoll) Bildschirm



Fakten in Kürze

Lenovo Miix 520 Business Editon. Produkttyp: Hybrid (2-in-1), Formfaktor: Austauschbar (Abnehmbar). Prozessorfamilie: Intel® Core™ i7, Prozessor: i7-8550U, Prozessor-Taktfrequenz: 1,8 GHz. Bildschirmdiagonale: 31 cm (12.2 Zoll), HD-Typ: WUXGA, Display-Auflösung: 1920 x 1200 Pixel, Touchscreen. RAM-Speicher: 16 GB, Interner Speichertyp: DDR4-SDRAM. Gesamtspeicherkapazität: 1000 GB, Speichermedien: SSD. Mobilfunknetzgenerierung: 4G. Installiertes Betriebssystem: Windows 10 Pro


Prozessor

  • Prozessorfamilie: Intel® Core™ i7
  • Prozessorhersteller: Intel
  • Prozessor: i7-8550U
  • Prozessor-Taktfrequenz: 1,8 GHz
  • Prozessorgeneration: Intel® Core™ i7 der achten Generation
  • Prozessor Boost-Frequenz: 4 GHz
  • Anzahl Prozessorkerne: 4
  • Prozessor-Threads: 8
  • Systembus-Rate: 4 GT/s
  • Prozessor-Cache: 8 MB
  • Prozessorsockel: BGA 1356
  • Prozessor Lithografie: 14 nm
  • Prozessorbetriebsmodi: 64-Bit
  • Prozessor Codename: Kaby Lake R
  • Bus Typ: OPI
  • Stepping: Y0
  • Motherboard Chipsatz: Intel SoC
  • Thermal Design Power (TDP): 15 W
  • TDP-up Frequenz konfigurierbar: 2 GHz
  • TDP-up konfigurierbar: 25 W
  • TDP-down konfigurierbar: 10 W
  • TDP-down Frequenz konfigurierbar: 0,8 GHz
  • Tjunction: 100 °C
  • Maximale Anzahl der PCI-Express-Lanes: 12
  • PCI-Express-Slots-Version: 3.0
  • PCI Express Konfigurationen: 1x2+2x1, 1x4, 2x2, 4x1
  • ECC vom Prozessor unterstützt: Nein

Speicher

  • RAM-Speicher: 16 GB
  • RAM-Speicher maximal: 16 GB
  • Interner Speichertyp: DDR4-SDRAM
  • Speichertaktfrequenz: 2133 MHz
  • Memory Formfaktor: On-board

Bildschirm

  • Bildschirmdiagonale: 31 cm (12.2 Zoll)
  • Display-Auflösung: 1920 x 1200 Pixel
  • Touchscreen: Ja
  • HD-Typ: WUXGA
  • Touch-Technologie: Multitouch
  • Art des Touchscreens: Kapazitiv
  • Panel-Typ: IPS
  • LED-Hintergrundbeleuchtung: Ja
  • Natives Seitenverhältnis: 16:10
  • Bildschirmform: Flach
  • Helligkeit: 320 cd/m²

Audio

  • Audio-System: Dolby Audio
  • Anzahl eingebauter Lautsprecher: 2
  • Lautsprecher Leistung: 1 W
  • Eingebauter Subwoofer: Nein
  • Eingebautes Mikrofon: Ja

Anschlüsse und Schnittstellen

  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: 1
  • DVI Anschluss: Nein
  • Kopfhörerausgänge: 1
  • Mikrofon-Eingang: Nein
  • Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
  • Typ Ladeanschluss: DC-Anschluss

Gewicht und Abmessungen

  • Gewicht: 1,26 kg
  • Gewicht (Tablet-Modus): 880 g
  • Breite (Tablet-Modus): 30 cm
  • Tiefe (Tablet-Modus): 20,5 cm
  • Höhe (Tablet-Modus): 9,9 mm

Leistung

  • Netzteilstärke: 45 W
  • Netzteilfrequenz: 50 - 60 Hz
  • Netzteil Eingansgsspannung: 100 - 240 V

Tastatur

  • Numerisches Keypad: Nein
  • Eingabegerät: Touchpad
  • Tastaturlayout: Deutsch
  • Windows Tasten: Ja

Netzwerk

  • Mobile Netzwerkverbindung: Ja
  • Top WLAN-Standard: Wi-Fi 5 (802.11ac)
  • Mobilfunknetzgenerierung: 4G
  • 4G-Standard: LTE
  • WLAN: Ja
  • WLAN-Standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • Eingebauter Ethernet-Anschluss: Nein
  • Bluetooth: Ja
  • Bluetooth-Version: 4.1
  • WWAN: Installed

Speichermedium

  • Gesamtspeicherkapazität: 1000 GB
  • Speichermedien: SSD
  • Optisches Laufwerk - Typ: Nein
  • Anzahl SSD installiert: 1
  • SSD Speicherkapazität: 1000 GB
  • SSD-Formfaktor: M.2
  • Integrierter Kartenleser: Ja
  • Kompatible Speicherkarten: MicroSD (TransFlash)

Software

  • Installiertes Betriebssystem: Windows 10 Pro
  • Betriebssystemsarchitektur: 64-Bit

Kamera

  • Frontkamera: Ja
  • Auflösung Frontkamera (numerisch): 5 MP
  • Rückkamera: Ja

Lieferumfang

  • Betriebsanleitung: Ja
  • Netzkabel enthalten: Ja

Akku/Batterie

  • Batteriekapazität: 39 Wh
  • Akku-/Batterietechnologie: Lithium Polymer (LiPo)
  • Anzahl Batteriezellen: 2
  • Akku-/Batteriebetriebsdauer: 8 h

Sonstige Funktionen

  • AC-Netzadapter: Ja
  • LightScribe: Nein
  • 3D: Nein
  • SIM-Karten-Unterstützung: Ja

Design

  • Produkttyp: Hybrid (2-in-1)
  • Produktfarbe: Grau
  • Formfaktor: Austauschbar (Abnehmbar)
  • Name der Farbe: Iron grey
  • Gehäusematerial: Aluminium, Magnesium

Grafik

  • Eingebaute Grafikadapter: Ja
  • Separater Grafikadapter: Nein
  • Dediziertes Grafikadaptermodell: Nicht verfügbar
  • On-Board Grafikadaptermodell: Intel® UHD Graphics 620
  • On-Board Grafikadapter Basisfrequenz: 300 MHz
  • Maximale dynamische Frequenz der On-Board Grafikadapter: 1150 MHz
  • Maximaler integrierter Grafik-Adapterspeicher: 32 GB
  • On-Board Grafikadapter DirectX Version: 12.0
  • On-Board Grafikadapter OpenGL Version: 4.4
  • On-Board Grafikadapter Geräte-ID: 0x5917

Prozessor Besonderheiten

  • Intel® My-WiFi-Technik (Intel® MWT): Ja
  • Intel® Smart-Response-Technologie: Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
  • Intel® Turbo-Boost-Technologie: 2.0
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Clear Video Technologie: Ja
  • Intel® InTru™ 3D Technologie: Ja
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® Flex Memory Access: Ja
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Intel® Trusted-Execution-Technik: Nein
  • Intel® Enhanced Halt State: Ja
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Intel® Sicherer Schlüssel: Ja
  • Intel® TSX-NI: Nein
  • Intel® OS Guard: Ja
  • Intel® Software Guard Extensions (Intel® SGX): Ja
  • Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID): Ja
  • Intel® 64: Ja
  • Execute Disable Bit: Ja
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Prozessor-Paketgröße: 42 x 24 mm
  • Unterstützte Befehlssätze: AVX 2.0, SSE4.1, SSE4.2
  • CPU Konfiguration (max): 1
  • Eingebettete Optionen verfügbar: Nein
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® Identity Protection Technologieversion: 1,00
  • Intel® Smart Response Technologieversion: 1,00
  • Intel® Secure Key Technologieversion: 1,00
  • Intel® TSX-NI-Version: 0,00
  • Intel® Virtualization Technologie (VT-X): Ja
  • ARK Prozessorerkennung: 122589
  • Konfliktloser-Prozessor: Ja

Nachhaltigkeit

  • Nachhaltigkeitszertifikate: RoHS, EPEAT Silver, ENERGY STAR

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
