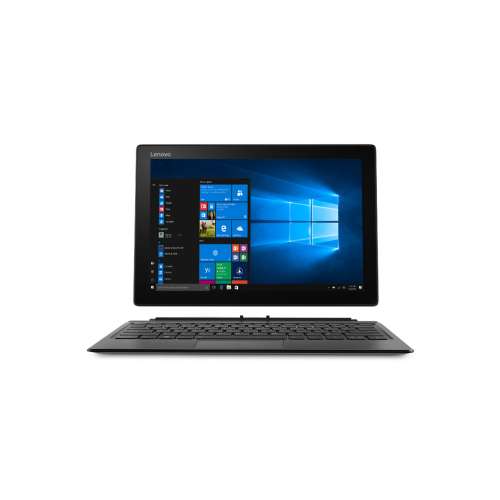

Lenovo Miix 520 Business Editon i5-8250U Hybrid (2-in-1) 31 cm (12.2 Zoll) Touchscreen WUXGA Intel® Core™ i5 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Grau
Hersteller-Nr.: 20M3000DGE
Markteinführung: 11/2017
Produktserie: Lenovo Miix 500
Hersteller: Lenovo





Fakten in Kürze
Lenovo Miix 520 Business Editon. Produkttyp: Hybrid (2-in-1), Formfaktor: Austauschbar (Abnehmbar). Prozessorfamilie: Intel® Core™ i5, Prozessor: i5-8250U, Prozessor-Taktfrequenz: 1,6 GHz. Bildschirmdiagonale: 31 cm (12.2 Zoll), HD-Typ: WUXGA, Display-Auflösung: 1920 x 1200 Pixel, Touchscreen. RAM-Speicher: 8 GB, Interner Speichertyp: DDR4-SDRAM. Gesamtspeicherkapazität: 256 GB, Speichermedien: SSD. Installiertes Betriebssystem: Windows 10 Pro. Produktfarbe: Grau
Prozessor
- Prozessorfamilie: Intel® Core™ i5
- Prozessorhersteller: Intel
- Prozessor: i5-8250U
- Prozessor-Taktfrequenz: 1,6 GHz
- Prozessorgeneration: Intel® Core™ i5 der achten Generation
- Prozessor Boost-Frequenz: 3,4 GHz
- Anzahl Prozessorkerne: 4
- Prozessor-Threads: 8
- Systembus-Rate: 4 GT/s
- Prozessor-Cache: 6 MB
- Prozessor Cache Typ: Smart Cache
- Prozessorsockel: BGA 1356
- Prozessor Lithografie: 14 nm
- Prozessorbetriebsmodi: 64-Bit
- Prozessor Codename: Kaby Lake R
- Bus Typ: OPI
- Stepping: Y0
- Motherboard Chipsatz: Intel SoC
- Thermal Design Power (TDP): 15 W
- TDP-up Frequenz konfigurierbar: 1,8 GHz
- TDP-up konfigurierbar: 25 W
- TDP-down konfigurierbar: 10 W
- TDP-down Frequenz konfigurierbar: 0,8 GHz
- Tjunction: 100 °C
- Maximale Anzahl der PCI-Express-Lanes: 12
- PCI-Express-Slots-Version: 3.0
- PCI Express Konfigurationen: 1x2+2x1, 1x4, 2x2, 4x1
- ECC vom Prozessor unterstützt: Nein
Speicher
- RAM-Speicher: 8 GB
- RAM-Speicher maximal: 8 GB
- Interner Speichertyp: DDR4-SDRAM
- Speichertaktfrequenz: 2133 MHz
- Memory Formfaktor: On-board
Bildschirm
- Bildschirmdiagonale: 31 cm (12.2 Zoll)
- Display-Auflösung: 1920 x 1200 Pixel
- Touchscreen: Ja
- HD-Typ: WUXGA
- Touch-Technologie: Multitouch
- Art des Touchscreens: Kapazitiv
- Panel-Typ: IPS
- LED-Hintergrundbeleuchtung: Ja
- Natives Seitenverhältnis: 16:10
- Bildschirmform: Flach
- Helligkeit: 320 cd/m²
Audio
- Audio-System: Dolby Audio
- Anzahl eingebauter Lautsprecher: 2
- Lautsprecher Leistung: 1 W
- Eingebauter Subwoofer: Nein
- Eingebautes Mikrofon: Ja
Anschlüsse und Schnittstellen
- USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: 1
- DVI Anschluss: Nein
- Kopfhörerausgänge: 1
- Mikrofon-Eingang: Nein
- Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
- Typ Ladeanschluss: DC-Anschluss
Gewicht und Abmessungen
- Gewicht: 1,26 kg
- Gewicht (Tablet-Modus): 880 g
- Breite (Tablet-Modus): 30 cm
- Tiefe (Tablet-Modus): 20,5 cm
- Höhe (Tablet-Modus): 9,9 mm
Leistung
- Netzteilstärke: 45 W
- Netzteilfrequenz: 50 - 60 Hz
- Netzteil Eingansgsspannung: 100 - 240 V
Tastatur
- Numerisches Keypad: Nein
- Eingabegerät: Touchpad
- Windows Tasten: Ja
Netzwerk
- Top WLAN-Standard: Wi-Fi 5 (802.11ac)
- WLAN: Ja
- WLAN-Standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Eingebauter Ethernet-Anschluss: Nein
- Bluetooth: Ja
- Bluetooth-Version: 4.1
- WWAN: Not installed
Speichermedium
- Gesamtspeicherkapazität: 256 GB
- Speichermedien: SSD
- Optisches Laufwerk - Typ: Nein
- Anzahl SSD installiert: 1
- SSD Speicherkapazität: 256 GB
- SSD-Formfaktor: M.2
- Integrierter Kartenleser: Ja
- Kompatible Speicherkarten: MicroSD (TransFlash)
Software
- Installiertes Betriebssystem: Windows 10 Pro
- Betriebssystemsarchitektur: 64-Bit
Kamera
- Frontkamera: Ja
- Auflösung Frontkamera (numerisch): 5 MP
- Rückkamera: Ja
- Auflösung Rückkamera (numerisch): 8 MP
Lieferumfang
- Betriebsanleitung: Ja
- Netzkabel enthalten: Ja
Akku/Batterie
- Batteriekapazität: 39 Wh
- Akku-/Batterietechnologie: Lithium Polymer (LiPo)
- Anzahl Batteriezellen: 2
- Akku-/Batteriebetriebsdauer: 8 h
Sonstige Funktionen
- AC-Netzadapter: Ja
- LightScribe: Nein
- 3D: Nein
Design
- Produkttyp: Hybrid (2-in-1)
- Produktfarbe: Grau
- Formfaktor: Austauschbar (Abnehmbar)
- Name der Farbe: Iron grey
- Gehäusematerial: Aluminium, Magnesium
Grafik
- Eingebaute Grafikadapter: Ja
- Separater Grafikadapter: Nein
- Dediziertes Grafikadaptermodell: Nicht verfügbar
- On-Board Grafikadaptermodell: Intel® UHD Graphics 620
- On-Board-Grafikadapterfamilie: Intel® UHD Graphics
- On-Board Grafikadapter Basisfrequenz: 300 MHz
- Maximale dynamische Frequenz der On-Board Grafikadapter: 1100 MHz
- Maximaler integrierter Grafik-Adapterspeicher: 32 GB
- On-Board Grafikadapter DirectX Version: 12.0
- On-Board Grafikadapter OpenGL Version: 4.4
- On-Board Grafikadapter Geräte-ID: 0x5917
Prozessor Besonderheiten
- Intel® My-WiFi-Technik (Intel® MWT): Ja
- Intel® Smart-Response-Technologie: Ja
- Intel® Identity-Protection-Technologie (Intel® IPT): Ja
- Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
- Intel® Turbo-Boost-Technologie: 2.0
- Verbesserte Intel SpeedStep Technologie: Ja
- Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
- Intel® Clear Video Technologie: Ja
- Intel® InTru™ 3D Technologie: Ja
- Intel® Quick-Sync-Video-Technik: Ja
- Intel® Flex Memory Access: Ja
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted-Execution-Technik: Nein
- Intel® Enhanced Halt State: Ja
- Intel® VT-x mit Extended Page Tables (EPT): Ja
- Intel® Sicherer Schlüssel: Ja
- Intel® TSX-NI: Nein
- Intel Stable Image Platform Program (SIPP): Nein
- Intel® OS Guard: Ja
- Intel® Software Guard Extensions (Intel® SGX): Ja
- Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID): Ja
- Intel® 64: Ja
- Execute Disable Bit: Ja
- Leerlauf Zustände: Ja
- Thermal-Überwachungstechnologien: Ja
- Prozessor-Paketgröße: 42 x 24 mm
- Unterstützte Befehlssätze: AVX 2.0, SSE4.1, SSE4.2
- Prozessor-Code: SR3LA
- CPU Konfiguration (max): 1
- Eingebettete Optionen verfügbar: Nein
- Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
- Intel® Identity Protection Technologieversion: 1,00
- Intel® Smart Response Technologieversion: 1,00
- Intel® Stable Image Platform Program (SIPP) Version: 0,00
- Intel® Secure Key Technologieversion: 1,00
- Intel® TSX-NI-Version: 0,00
- Intel® Virtualization Technologie (VT-X): Ja
- ARK Prozessorerkennung: 124967
- Konfliktloser-Prozessor: Ja
Nachhaltigkeit
- Nachhaltigkeitszertifikate: RoHS, EPEAT Silver, ENERGY STAR
