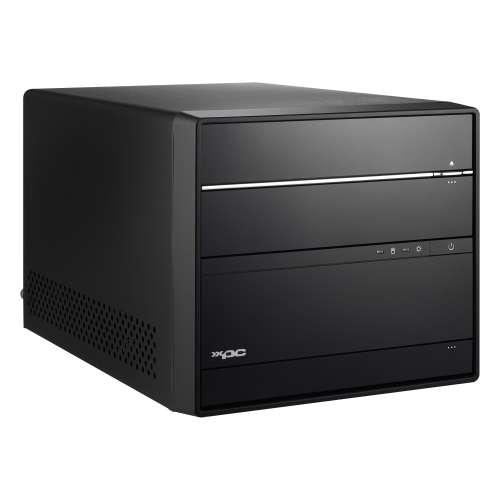

Shuttle XPC cube Barebone SH570R6 Plus - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 500W PSU

Hersteller-Nr.: SH570R6 PLUS
Markteinführung: 11/2021
Hersteller: Shuttle



Fakten in Kürze

Shuttle XPC cube Barebone SH570R6 Plus - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 500W PSU. Gehäusetyp: Cube, Produkttyp: PC Barebone. Motherboard Chipsatz: Intel H570, Prozessorsockel: LGA 1200 (Socket H5), BIOS-Typ: UEFI AMI. Unterstützte Arbeitsspeicher: DDR4-SDRAM, Anzahl der Speichersteckplätze: 4, RAM-Speicher maximal: 128 GB. Unterstützte Speicherlaufwerke: HDD & SSD. Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 2. Kühlung: Aktiv. Stromversorgung: 500 W


Produktbeschreibung

Unterstützt Intel Core Prozessoren der 10./11. Generation und drei UHD-Displays
Das Shuttle XPC Barebone SH570R6 Plus zeigt, wie dezent und leistungsstark ein moderner PC aussieht. Sein Aluminiumgehäuse mit gebürsteter, schwarzer Oberfläche hat ein Volumen von lediglich 14 Litern, bringt dabei aber alles mit, was man zum Konfigurieren von beispielsweise einer Workstation braucht - die Performance von Intel Core Prozessoren der 10./11. Generation "Comet Lake-S" bzw. "Rocket Lake-S", Dual-Slot PCI-Express-Grafikkarte, schneller M.2 NVMe-SSD, zwei 3,5"-Festplatten im RAID-Verbund und bis zu 128 GB DDR4-Speicher samt Blu-ray-Laufwerk. Selbst ohne PCIe-Grafikkarte werden bereits optional bis zu drei UHD-Displays gleichzeitig unterstützt.


Funktionen & Besonderheiten

  • Mini-PC (Sockel 1200)
  • 5,25" Schacht
  • Dual LAN, 1x HDMI 2.0 , 2x DP 1.4b
  • 500 Watt Netzteil

Prozessor

  • Eingebauter Prozessor: Nein
  • Thermal Design Power (TDP): 125 W

Speicher

  • Arbeitsspeicher Typ: DIMM
  • Anzahl der Speichersteckplätze: 4
  • RAM-Speicher maximal: 128 GB
  • Unterstützte Arbeitsspeichergeschwindigkeit: 2666,2933,3200 MHz
  • Unterstützte Arbeitsspeicher: DDR4-SDRAM
  • Speicherkanäle: Zweikanalig
  • Speicherspannung: 1.2 V

Anschlüsse und Schnittstellen

  • Anzahl USB 2.0 Anschlüsse: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 3
  • Anzahl HDMI-Anschlüsse: 1
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 4
  • HDMI-Version: 2.0b
  • Anzahl DisplayPort Anschlüsse: 2
  • DisplayPorts-Version: 1.4
  • Mikrofon-Eingang: Ja
  • Kopfhörerausgänge: 1

Gewicht und Abmessungen

  • Breite: 215 mm
  • Tiefe: 332 mm
  • Höhe: 190 mm
  • Gewicht: 3,5 kg
  • Paketgewicht: 4,5 kg

Leistung

  • Netzteiltyp: Interne Stromversorgungseinheit
  • Stromversorgung: 500 W
  • Anzahl von Stromversorgungseinheiten: 1
  • AC Eingangsspannung: 100 - 240 V
  • AC Eingangsfrequenz: 50/60 Hz

Netzwerk

  • Eingebauter Ethernet-Anschluss: Ja
  • WLAN: Nein
  • LAN-Controller: Intel® I210-AT, Intel® I219-LM

Speichermedium

  • Unterstützte Speicherlaufwerke: HDD & SSD
  • unterstützte Speicherlaufwerksgrößen: 2.5,3.5,M.2

Lieferumfang

  • Netzkabel enthalten: Ja
  • Schnellstartübersicht: Ja
  • Treiber enthalten: Ja

Erweiterungssteckplätze

  • PCI-Express-Slots-Version: 4.0
  • PCI-Express x4-Slots: 1
  • PCI-Express x16-Slots: 1

Design

  • Gehäusetyp: Cube
  • Produktfarbe: Schwarz
  • Kühlung: Aktiv
  • Produkttyp: PC Barebone
  • LED-Anzeigen: Ja
  • Gehäusematerial: Aluminium
  • Kabelsperre-Slot: Ja
  • Slot-Typ Kabelsperre: Kensington

Grafik

  • Eingebaute Grafikadapter: Ja

Leistungen

  • Motherboard Chipsatz: Intel H570
  • Prozessorsockel: LGA 1200 (Socket H5)
  • Anzahl unterstützter Prozessoren: 1
  • Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • BIOS-Typ: UEFI AMI
  • Trusted Platform Module (TPM): Ja
  • Trusted Platform Module (TPM) Version: 2.0
  • Audio Kanäle: 5.1 Kanäle
  • Audio-Chip: Realtek ALC897
  • Unterstützt Windows-Betriebssysteme: Windows 10, Windows 11
  • Unterstützte Linux-Betriebssysteme: Ja

Logistikdaten

  • Warentarifnummer (HS): 84713000
