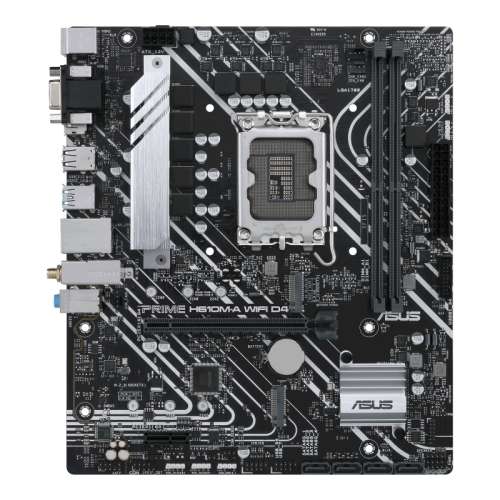

ASUS PRIME H610M-A WIFI D4 Motherboard Intel H610 LGA 1700 micro ATX

Hersteller-Nr.: PRIME H610M-A WIFI D4
Markteinführung: 03/2022
Hersteller: ASUS



Fakten in Kürze

ASUS PRIME H610M-A WIFI D4. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 64 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA, Unterstützte Speicherlaufwerke: HDD & SSD. Ethernet Schnittstellen Typ: Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 5 (802.11ac), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel


Prozessor

  • Prozessorhersteller: Intel
  • Prozessorsockel: LGA 1700
  • Kompatible Prozessoren: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Unterstützte Prozessorsteckplätze: LGA 1700

Speicher

  • Unterstützte Arbeitsspeicher: DDR4-SDRAM
  • Anzahl der Speichersteckplätze: 2
  • RAM-Speicher maximal: 64 GB
  • Arbeitsspeicher Typ: DIMM
  • Speicherkanäle: Zweikanalig
  • Ohne ECC: Ja
  • Unterstützte Arbeitsspeichergeschwindigkeit: 2133,2400,2666,2800,2933,3000,3200 MHz
  • Unterstützte Speichertaktrate (max.): 3200 MHz
  • Unbuffered Speicher: Ja

Gewicht und Abmessungen

  • Breite: 244 mm
  • Tiefe: 211 mm

Netzwerk

  • WLAN: Ja
  • Eingebauter Ethernet-Anschluss: Ja
  • Ethernet Schnittstellen Typ: Gigabit Ethernet
  • Top WLAN-Standard: Wi-Fi 5 (802.11ac)
  • WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • Bluetooth: Ja
  • Bluetooth-Version: 5.0

Interne E/A-Anschlüsse

  • Anzahl USB 2.0 Schnittstellen: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 1
  • SATA III Anschlüsse: 4
  • S/PDIF aus Stecker: Ja
  • Front Panel Audiostecker: Ja
  • ATX Stromstecker (24-pol.): Ja
  • CPU Ventilatorstecker: Ja
  • Zahl der Chassisventilatorstecker: 2
  • EPS Stromstecker (8-pin): Ja
  • Zahl der COM Stecker: 1
  • TPM-Verbinder: Ja
  • 12-V-Stromanschluss: Ja
  • RGB-LED-Stiftleiste: Ja

E/A-Anschlüsse auf der Rückseite

  • Anzahl USB 2.0 Anschlüsse: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 2
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
  • Anzahl VGA (D-Sub) Anschlüsse: 1
  • Anzahl HDMI-Anschlüsse: 1
  • Anzahl PS/2 Anschlüsse: 2
  • HDMI-Version: 2.1
  • Anzahl DisplayPort Anschlüsse: 1
  • DisplayPorts-Version: 1.4
  • Kopfhörerausgänge: 1
  • Mikrofon-Eingang: Ja

Speicher-Controller

  • Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA
  • Unterstützte Speicherlaufwerke: HDD & SSD

Lieferumfang

  • Mitgelieferte Kabel: SATA

Erweiterungssteckplätze

  • PCI-Express x1 (Gen 3.x)-Anschlüsse: 1
  • PCI Express x16-Steckplätze (Gen 4.x): 1
  • Anzahl der M.2 (M)-Steckplätze: 2

BIOS

  • BIOS-Typ: UEFI AMI
  • BIOS-Speichergröße: 128 Mbit

Grafik

  • Parallele Verarbeitungstechnologie: Nicht unterstützt

Merkmale

  • Komponente für: PC
  • Motherboardformfaktor: micro ATX
  • Motherboard Chipsatz Familie: Intel
  • Motherboard Chipsatz: Intel H610
  • Audio Kanäle: 7.1 Kanäle
  • Unterstützt Windows-Betriebssysteme: Windows 10 x64, Windows 11 x64

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
