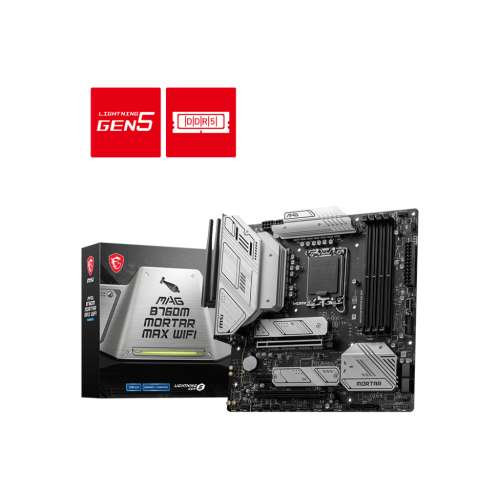

MSI MAG B760M MORTAR MAX WIFI Motherboard LGA 1700 micro ATX

Hersteller-Nr.: MAG B760M MORTAR MAX WIFI
Markteinführung: 02/2023
Hersteller: MSI



Fakten in Kürze

MSI MAG B760M MORTAR MAX WIFI. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel® Celeron®, Intel® Pentium® Gold. Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 192 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 6E (802.11ax), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel


Prozessor

  • Prozessorhersteller: Intel
  • Prozessorsockel: LGA 1700
  • Kompatible Prozessoren: Intel® Celeron®, Intel® Pentium® Gold
  • Maximale Anzahl an SMP-Prozessoren: 1
  • Unterstützte Prozessorsteckplätze: LGA 1700

Speicher

  • Unterstützte Arbeitsspeicher: DDR5-SDRAM
  • Anzahl der Speichersteckplätze: 4
  • RAM-Speicher maximal: 192 GB
  • Arbeitsspeicher Typ: DIMM
  • Speicherkanäle: Zweikanalig
  • Ohne ECC: Ja
  • Unterstützte Arbeitsspeichergeschwindigkeit: 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
  • Unterstützte Speichertaktrate (max.): 7000 MHz

Gewicht und Abmessungen

  • Breite: 243,8 mm
  • Tiefe: 243,8 mm

Netzwerk

  • WLAN: Ja
  • Eingebauter Ethernet-Anschluss: Ja
  • Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet
  • Top WLAN-Standard: Wi-Fi 6E (802.11ax)
  • WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Bluetooth: Ja
  • Bluetooth-Version: 5.3

Interne E/A-Anschlüsse

  • Anzahl USB 2.0 Schnittstellen: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse: 1
  • SATA III Anschlüsse: 4
  • Front Panel Audiostecker: Ja
  • Frontpanel-Stecker: Ja
  • ATX Stromstecker (24-pol.): Ja
  • CPU Ventilatorstecker: Ja
  • TPM-Verbinder: Ja
  • RGB-LED-Stiftleiste: Ja

E/A-Anschlüsse auf der Rückseite

  • Anzahl USB 2.0 Anschlüsse: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 3
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
  • Anzahl HDMI-Anschlüsse: 1
  • USB 3.2 Gen 2x2 Typ-C Anzahl Anschlüsse: 1
  • HDMI-Version: 2.1
  • Anzahl DisplayPort Anschlüsse: 1
  • DisplayPorts-Version: 1.4

Speicher-Controller

  • Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III
  • RAID-Unterstützung: Ja
  • RAID Level: 0, 1, 5, 10

Erweiterungssteckplätze

  • PCI-Express x1 (Gen 3.x)-Anschlüsse: 2

BIOS

  • BIOS-Typ: UEFI AMI
  • BIOS-Speichergröße: 256 Mbit
  • Systemverwaltung BIOS (SMBIOS) Version: 3.5

Merkmale

  • Komponente für: PC
  • Motherboardformfaktor: micro ATX
  • Motherboard Chipsatz Familie: Intel
  • Audio Kanäle: 7.1 Kanäle
  • Audio-Chip: Realtek ALC897
  • Energiequelle: ATX
  • Unterstützt Windows-Betriebssysteme: Windows 10, Windows 11

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
