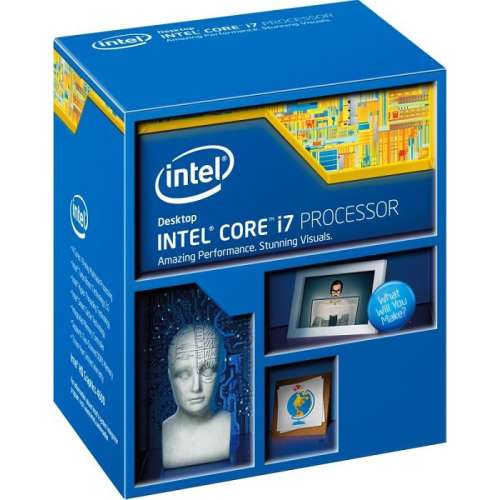

Intel Core i7-4770S Prozessor 3,1 GHz 8 MB Smart Cache Box

Hersteller-Nr.: BX80646I74770S
Markteinführung: 04/2013
Produktserie: Intel Core i7
Hersteller: Intel



Fakten in Kürze

Intel Core i7-4770S. Prozessorfamilie: Intel® Core™ i7, Prozessorsockel: LGA 1150 (Socket H3), Prozessor Lithografie: 22 nm. Speicherkanäle: Zweikanalig, Maximaler interner Speicher, vom Prozessor unterstützt: 32 GB, Speichertypen, vom Prozessor unterstützt: DDR3-SDRAM, DDR3L-SDRAM. On-Board Grafikadaptermodell: Intel® HD Graphics 4600, Maximaler integrierter Grafik-Adapterspeicher: 2 GB, On-Board Grafikadapter unterstützte Ausgänge: Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub). Marktsegment: Desktop, PCI Express Konfigurationen: 1x16, 2x8, 1x8+2x4, Unterstützte Befehlssätze: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 3,9 GHz


Produktbeschreibung

Herausragende Leistung und brillante Darstellung auf hchstem Niveau. Holen Sie sich Spitzenleistung für anspruchsvollste Anwendungen – mit einem Intel® Core™ i7 Prozessor der vierten Generation. Ob 3D- oder HD-Entertainment, Multitasking oder Multimedia: Der Intel® Core™ i7 Prozessor der vierten Generation bietet Spitzenleistung für die anspruchsvollsten Aufgaben.

Die Intel® Hyper-Threading-Technik ermöglicht intelligentes Multitasking und lässt Sie mühelos zwischen Anwendungen wechseln. Die Intel® Turbo-Boost-Technik 2.0 setzt bei Bedarf automatisch zusätzliche Leistung frei. Die im Prozessor integrierten Grafikfunktionen sorgen für eine flüssige und perfekt abgestimmte Wiedergabe Ihrer Filme, Spiele und Fotos – ohne zusätzliche Hardware im PC!

Gönnen Sie sich starke Turbo-Boost-Leistung und längere Akkulaufzeiten, und genießen Sie mit integrierter Sicherheit die beruhigende Gewissheit, dass Sie besser geschützt sind. Erleben Sie den sichtbaren Unterschied. Der Intel® Core™ i7 Prozessor der vierten Generation ist die optimale Wahl für alle, die höchste Ansprüche an ihren Computer stellen. Denn faszinierender als unsere Technik ist nur, was Sie damit machen.


Technische Details

  • Prozessor Cache: 8192 KB
  • Produkttyp: Processor
  • Videokompressionsformate: Ja
  • Maximaler Grafikkartenspeicher: 1740 MB
  • Unterstützte Arbeitsspeicher: DDR3-SDRAM, DDR3L-SDRAM
  • Maximaler Grafik-Adapterspeicher: 2 GB
  • Geboren am: Q2'13
  • Bus-Bandbreite: 5
  • Bus-Typ-Einheiten: GT/s
  • Grafik max. dynamische Frequenz: 1.20 GHz
  • Startdatum: Q2'13
  • Maximale Auflösung & Bildwiederholrate (DisplayPort): 3840x2160@60Hz
  • Maximale Auflösung & Bildwiederholrate (HDMI): 4096x2304@24Hz
  • Maximale Auflösung (Integrierter Flachbildschirm): 3840x2160@60Hz
  • Maximale Auflösung & Bildwiederholrate (VGA): 1920x1200@60Hz
  • Anzahl der Grafik-Cores: 20
  • OpenGL-Unterstützung: Ja
  • Produktbezeichnung: Intel Core i7-4770S (8M Cache, up to 3.90 GHz)
  • Status: Launched
  • Maximaler Speicher: 32 GB
  • Markenname Prozessor: Intel Core i7 vPro Intel Core i7 vPro Processor
  • Letzte Änderung: 63903513
  • Produktfamilie: 4th Generation Intel Core i7 Processors
  • Busgeschwindigkeit: 5 GT/s
  • Prozessor-ID: 0x412
  • Instandhaltungsstatus: End of Servicing Lifetime
  • Datum des Endes der Wartungsaktualisierung: Wednesday, June 30, 2021

Prozessor

  • Prozessorfamilie: Intel® Core™ i7
  • Anzahl Prozessorkerne: 4
  • Prozessorsockel: LGA 1150 (Socket H3)
  • Prozessor Lithografie: 22 nm
  • Box: Ja
  • Kühler enthalten: Ja
  • Prozessorhersteller: Intel
  • Prozessor: i7-4770S
  • Grundfrequenz des Prozessors: 3,1 GHz
  • Prozessorbetriebsmodi: 64-Bit
  • Prozessorgeneration: Intel® Core™ i7 der vierten Generation
  • Komponente für: PC
  • Prozessor-Serien: Intel Core i7-4700 Desktop series
  • Prozessor-Threads: 8
  • Systembus-Rate: 5 GT/s
  • Prozessor Boost-Frequenz: 3,9 GHz
  • Prozessor-Cache: 8 MB
  • Prozessor Cache Typ: Smart Cache
  • Thermal Design Power (TDP): 65 W
  • Stepping: C0
  • Bus Typ: QPI
  • Anzahl der QPI links: 1
  • Durch den Prozessor (max) unterstützte Speicherbandbreite: 25,6 GB/s
  • Prozessor Codename: Haswell
  • Prozessor-Code: SR14H
  • ARK Prozessorerkennung: 75124
  • Generation: 4th Generation

Speicher

  • Speicherkanäle: Zweikanalig
  • Maximaler interner Speicher, vom Prozessor unterstützt: 32 GB
  • Speichertypen, vom Prozessor unterstützt: DDR3-SDRAM, DDR3L-SDRAM
  • Speichertaktraten, vom Prozessor unterstützt: 1333,1600 MHz
  • ECC: Nein

Gewicht und Abmessungen

  • Prozessor-Paketgröße: 37.5 x 37.5 mm

Betriebsbedingungen

  • Tcase: 71,35 °C

Verpackungsdaten

  • Verpackungsbreite: 70 mm
  • Verpackungstiefe: 116 mm
  • Verpackungshöhe: 101 mm
  • Paketgewicht: 338 g
  • Verpackungsart: Einzelhandels-Box

Sonstige Funktionen

  • Intel® Virtualisierungstechnik (Intel® VT): VT-d, VT-x
  • RAM-Speicher maximal: 32 GB
  • RAM-Speicher maximal: 32768 MB
  • Cache-Speicher: 8 MB
  • Video-Decodierung: Ja
  • Grafischer Ausgang: eDP/DP/HDMI/DVI/VGA

Grafik

  • Eingebaute Grafikadapter: Ja
  • On-Board Grafikadaptermodell: Intel® HD Graphics 4600
  • Maximaler integrierter Grafik-Adapterspeicher: 2 GB
  • On-Board Grafikadapter unterstützte Ausgänge: Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub)
  • On-Board Grafikadapter Basisfrequenz: 350 MHz
  • Maximale dynamische Frequenz der On-Board Grafikadapter: 1200 MHz
  • Anzahl an unterstützen Displays (On-Board-Grafik): 3
  • On-Board Grafikadapter DirectX Version: 11.1
  • On-Board Grafikadapter OpenGL Version: 4.3
  • Maximale Auflösung des On-Board Grafikadapters (DisplayPort): 3840 x 2160 Pixel
  • Maximale Auflösung des On-Board Grafikadapters (eDP - integrierter Flachbildschirm): 3840 x 2160 Pixel
  • Integrierter Grafik-Adapter maximale Auflösung (HDMI): 4096 x 2304 Pixel
  • Integrierter Grafik-Adapter maximale Auflösung (VGA): 1920 x 1200 Pixel
  • Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (DisplayPort): 60 Hz
  • Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (eDP - integrierter Flachbildschirm): 60 Hz
  • Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (HDMI): 24 Hz
  • Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (VGA): 60 Hz
  • On-Board Grafikadapter Geräte-ID: 0x412

Prozessor Besonderheiten

  • Intel® Anti-Theft Technologie (Intel® AT): Ja
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja
  • Intel® My-WiFi-Technik (Intel® MWT): Ja
  • Intel® Turbo-Boost-Technologie: 2.0
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® InTru™ 3D Technologie: Ja
  • Intel® Wireless-Display (Intel® WiDi): Ja
  • Intel® FDI-Technik: Ja
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Dual Display Capable Technology: Ja
  • Intel® Insider™: Ja
  • Intel® Smart Cache: Ja
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Intel® Trusted-Execution-Technik: Ja
  • Intel® Turbo Boost Technology 2.0 frequency: 3,9 GHz
  • Intel® Transactional Synchronization Extensions: Nein
  • Intel® Enhanced Halt State: Ja
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Intel® Sicherer Schlüssel: Ja
  • Intel® TSX-NI: Nein
  • Intel Stable Image Platform Program (SIPP): Ja
  • Intel® OS Guard: Ja
  • Intel® 64: Ja
  • Intel® Identity Protection Technologieversion: 1,00
  • Intel® Secure Key Technologieversion: 1,00
  • Intel® Small Business Advantage (SBA) Version: 1,00
  • Intel® Stable Image Platform Program (SIPP) Version: 1,00
  • Intel® Virtualization Technologie (VT-X): Ja
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® TSX-NI-Version: 0,00
  • Konfliktloser-Prozessor: Ja
  • Intel® vPro™ Platform Eligibility: Ja

Merkmale

  • Execute Disable Bit: Ja
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Marktsegment: Desktop
  • Maximale Anzahl der PCI-Express-Lanes: 16
  • PCI-Express-Slots-Version: 3.0
  • PCI Express Konfigurationen: 1x16, 2x8, 1x8+2x4
  • Unterstützte Befehlssätze: SSE4.1, SSE4.2, AVX 2.0
  • Skalierbarkeit: 1S
  • CPU Konfiguration (max): 1
  • Eingebettete Optionen verfügbar: Ja
  • Graphics & IMC lithography: 22 nm
  • Spezifikation der thermischen Lösung: PCG 2013C
  • Exportkontroll-Klassifizierungsnummer (ECCN): 5A992C
  • Warenklassifizierungssystem zur automatisierten Nachverfolgung (CCATS): G077159

Logistikdaten

  • Warentarifnummer (HS): 8542310001

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
