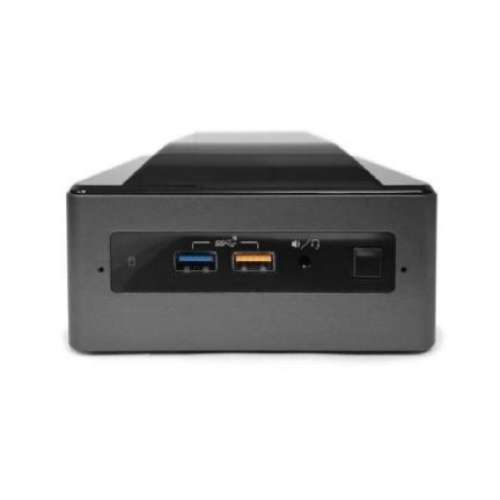

Intel NUC 8 i5-8260U UCFF Intel® Core™ i5 8 GB 240 GB SSD Mini-PC Schwarz

Hersteller-Nr.: BOXNUC8I5BELS1
Markteinführung: 04/2021
Hersteller: Intel



Fakten in Kürze

Intel NUC 8. Prozessor-Taktfrequenz: 1,6 GHz, Prozessorfamilie: Intel® Core™ i5, Prozessor: i5-8260U. RAM-Speicher: 8 GB. Gesamtspeicherkapazität: 240 GB, Speichermedien: SSD, Integrierter Kartenleser. On-Board Grafikadaptermodell: Intel Iris Plus Graphics 655. WLAN. Stromversorgung: 90 W. Gehäusetyp: UCFF. Produkttyp: Mini-PC. Produktfarbe: Schwarz


Prozessor

  • Prozessorfamilie: Intel® Core™ i5
  • Prozessorhersteller: Intel
  • Prozessor: i5-8260U
  • Prozessor-Taktfrequenz: 1,6 GHz
  • Prozessorgeneration: Intel® Core™ i5 der achten Generation
  • Anzahl Prozessorkerne: 4
  • Prozessor Boost-Frequenz: 3,9 GHz
  • Prozessorsockel: BGA 1528
  • Prozessor-Cache: 6 MB
  • Pufferspeicher L3: 6 MB
  • Prozessor-Threads: 8
  • Prozessor Lithografie: 14 nm
  • Prozessor Codename: Coffee Lake
  • Thermal Design Power (TDP): 28 W
  • TDP-up Frequenz konfigurierbar: 1,8 GHz
  • TDP-up konfigurierbar: 25 W
  • TDP-down konfigurierbar: 20 W
  • TDP-down Frequenz konfigurierbar: 1,1 GHz
  • PCI-Express-Slots-Version: 3.0
  • Anzahl unterstützter Prozessoren: 1
  • Durch den Prozessor (max) unterstützte Speicherbandbreite: 38,4 GB/s

Speicher

  • RAM-Speicher: 8 GB
  • RAM-Speicher maximal: 32 GB
  • Zahl der DIMM Slots: 2
  • ECC: Nein
  • Speicherkanäle: Zweikanalig
  • Unterstützte Arbeitsspeicher: DDR4-SDRAM
  • Speicherbandbreite (max.): 38,4 GB/s

Anschlüsse und Schnittstellen

  • Anzahl USB 2.0 Anschlüsse: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
  • Anzahl Thunderbolt 3 Anschlüsse: 1
  • Anzahl HDMI-Anschlüsse: 1
  • Menge der Thunderbolt-Anschlüsse: 1
  • HDMI-Version: 2.0a
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
  • Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
  • Gleichstrom-Anschluss (DC): Ja
  • M. 2-Karten-Slot (Speicher): 2242/2280
  • Menge interner USB 2.0-Anschlüsse: 2
  • USB-Version: 2.0/3.2 Gen 2 (3.1 Gen 2)
  • SATA III Anschlüsse: 2
  • Grafischer Ausgang: HDMI 2.0a; USB-C (DP1.2)

Gewicht und Abmessungen

  • Breite: 117 mm
  • Tiefe: 112 mm
  • Höhe: 51 mm

Leistung

  • Stromversorgung: 90 W
  • DC input Spannung: 12 - 19 V

Betriebsbedingungen

  • Betriebstemperatur: 0 - 40 °C
  • Temperaturbereich bei Lagerung: -20 - 60 °C

Netzwerk

  • Eingebauter Ethernet-Anschluss: Ja
  • WLAN: Ja
  • LAN-Controller: Intel® I219-V
  • Top WLAN-Standard: Wi-Fi 5 (802.11ac)
  • WLAN-Standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • WLAN-Controllermodell: Intel Dual Band Wireless-AC 9560
  • Bluetooth: Ja
  • Bluetooth-Version: 5.0

Speichermedium

  • Gesamtspeicherkapazität: 240 GB
  • Optisches Laufwerk - Typ: Nein
  • Speichermedien: SSD
  • Integrierter Kartenleser: Ja
  • Gesamtkapazität der SSDs: 240 GB
  • Anzahl SSD installiert: 1
  • SSD Speicherkapazität: 240 GB
  • SSD-Formfaktor: M.2
  • Kompatible Speicherkarten: MicroSDXC
  • RAID Level: 0, 1

Zertifikate

  • Zertifizierung: CISPR 32, FCC, ICES, EN, ETSI EN, AS/NZS, VCCI, KN, CNS, RoHS, WEEE

Software

  • Installiertes Betriebssystem: Nein
  • Kompatible Betriebssysteme: Windows 10, 64-bit*

Lieferumfang

  • Anzeige enthalten: Nein
  • Prozessor enthalten: Intel® Core™ i5-8259U Processor (6M Cache, up to 3.80 GHz)

Erweiterungssteckplätze

  • PCI-Express x4-Slots: 1

Sonstige Funktionen

  • Netzteiltyp: External AC adapter
  • Sicherheit: IEC 60950-1, UL 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1
  • Grafikkarte-Familie: Intel
  • Kühlung: Aktiv
  • SATA Anschlüsse: 2
  • Intel® Virtualisierungstechnik (Intel® VT): VT-d, VT-x
  • Anzahl der Display unterstützt: 3
  • ARK ID: 126148
  • Anzahl der USB-Anschlüsse: 6
  • Verbraucher-Rx-Infrarotsensor: Ja
  • Zusätzliche Kopfzeilen: CEC, 2x USB2.0, FRONT_PANEL
  • Exportkontroll-Klassifizierungsnummer (ECCN): 5A992C
  • Warenklassifizierungssystem zur automatisierten Nachverfolgung (CCATS): G157815L2

Design

  • Gehäusetyp: UCFF
  • Produktfarbe: Schwarz
  • Kabelsperre-Slot: Ja
  • Slot-Typ Kabelsperre: Kensington
  • Intel® vPro™ Platform Eligibility: Nein
  • Produktfamilie: Intel NUC
  • Produktreihe: Intel NUC kit
  • Produktcodename: Bean Canyon

Grafik

  • Separater Grafikadapter: Nein
  • Eingebaute Grafikadapter: Ja
  • Dediziertes Grafikadaptermodell: Nicht verfügbar
  • On-Board Grafikadaptermodell: Intel Iris Plus Graphics 655

Prozessor Besonderheiten

  • Intel HD-Audio-Technik: Ja
  • Intel® 64: Ja
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Eingebettete Optionen verfügbar: Nein
  • Intel® InTru™ 3D Technologie: Ja
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Clear Video Technologie: Ja
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Intel® TSX-NI: Nein
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Intel Stable Image Platform Program (SIPP): Nein
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Intel® Sicherer Schlüssel: Ja
  • Intel® OS Guard: Ja
  • Intel® Trusted-Execution-Technik: Nein
  • Execute Disable Bit: Ja
  • Intel® Flex Memory Access: Ja
  • Intel® Software Guard Extensions (Intel® SGX): Ja
  • CPU Konfiguration (max): 1
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® Virtualization Technologie (VT-X): Ja
  • Intel® Rapid-Storage-Technik: Ja
  • ARK Prozessorerkennung: 135935
  • Intel® Optane™ Memory-bereit: Ja
  • Intel® Platform Trust Technology (Intel® PTT): Ja
  • Intel® Turbo-Boost-Technologie: 2.0
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® My-WiFi-Technik (Intel® MWT): Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja

Leistungen

  • Produkttyp: Mini-PC
  • Motherboardformfaktor: UCFF
  • Kompatible Prozessoren: Intel® Core™ i5
  • Audio Kanäle: 7.1 Kanäle
  • BIOS-Typ: EEPROM
  • BIOS-Speichergröße: 64 Mbit
  • Trusted Platform Module (TPM): Nein
  • Systemverwaltung BIOS (SMBIOS) Version: 2.5
  • Intel® Visual BIOS: Ja
  • Intel® Express BIOS Update: Ja
  • Herausnehmbarer Speicherkarten-Steckplatz: microSDXC with UHS-I support
  • Status: Launched
  • Unterstützte RAID-Konfiguration: 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

Logistikdaten

  • Warentarifnummer (HS): 84715000
