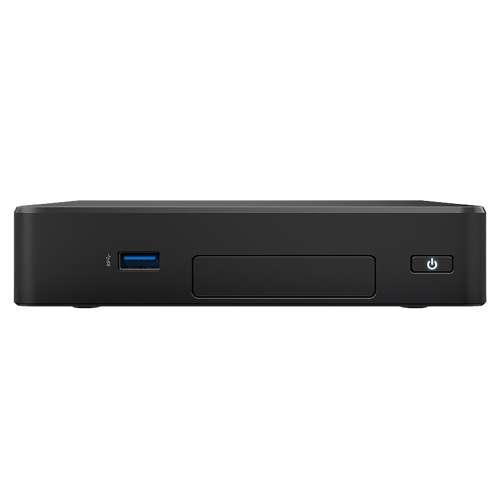

Intel NUC BKNUC8CCHKR2 PC/Workstation N3350 mini PC Intel® Celeron® N 4 GB LPDDR3-SDRAM 64 GB eMMC Mini-PC Schwarz

Hersteller-Nr.: BKNUC8CCHKR2
Markteinführung: 08/2019
Hersteller: Intel



Fakten in Kürze

Intel NUC BKNUC8CCHKR2. Prozessor-Taktfrequenz: 1,1 GHz, Prozessorfamilie: Intel® Celeron® N, Prozessor: N3350. RAM-Speicher: 4 GB, Interner Speichertyp: LPDDR3-SDRAM. Gesamtspeicherkapazität: 64 GB, Speichermedien: eMMC. On-Board Grafikadaptermodell: Intel® HD Graphics 500. WLAN. Gehäusetyp: mini PC. Produkttyp: Mini-PC. Produktfarbe: Schwarz


Produktbeschreibung

Intel® Virtualisierungstechnik (VT-x)

Mit der Intel® Virtualisierungstechnik (VT-x) kann eine Hardwareplattform als mehrere „virtuelle“ Plattformen eingesetzt werden. Sie bietet verbesserte Verwaltbarkeit durch weniger Ausfallzeiten und eine Beibehaltung der Produktivität, indem die Rechenvorgänge in separate Partitionen verschoben werden.

Intel® Directed-I/O-Virtualisierungstechnik (VT-d)

Die Intel® Directed-I/O-Virtualisierungstechnik (VT-d) setzt die bestehende Unterstützung von Virtualisierungslösungen für die IA-32 (VT-x) und Systeme mit Itanium® Prozessoren (VT-i) fort und erweitert diese um neue Unterstützung für die I/O-Gerätevirtualisierung. Die Intel VT-d kann Benutzern helfen, die Sicherheit und Zuverlässigkeit von Systemen sowie die Leistung von I/O-Geräten in virtualisierten Umgebungen zu verbessern.

Intel® HD-Audio-Technik

Intel® High-Definition-Audio (Intel® HD-Audio) kann mehr Kanäle mit hoher Qualität wiedergeben als vorherige integrierte Audioformate. Zudem bietet Intel® High-Definition-Audio die Technik, die zur Unterstützung der neuesten Audioinhalte erforderlich ist.

Intel® Platform Trust Technology (Intel® PTT)

Intel® Platform Trust Technology (Intel® PTT) ist eine Plattformfunktionalität zur Speicherung von Anmeldedaten und zur Schlüsselverwaltung, und wird von Windows 8* und Windows® 10 verwendet. Intel® PTT unterstützt BitLocker* für die Festplattenverschlüsselung und unterstützt alle Microsoft-Voraussetzungen für Firmware Trusted Platform Module (fTPM) 2.0.


Prozessor

  • Prozessorfamilie: Intel® Celeron® N
  • Prozessorhersteller: Intel
  • Prozessor: N3350
  • Prozessor-Taktfrequenz: 1,1 GHz
  • Anzahl Prozessorkerne: 2
  • Prozessor Boost-Frequenz: 2,4 GHz
  • Prozessorsockel: BGA 1296
  • Prozessor-Cache: 2 MB
  • Prozessor Cache Typ: L2
  • Prozessor-Threads: 2
  • Systembus-Rate: 5 GT/s
  • Prozessor Lithografie: 14 nm
  • Prozessorbetriebsmodi: 64-Bit
  • Prozessor-Serien: Intel Celeron N3000 series
  • Prozessor Codename: Apollo Lake
  • Thermal Design Power (TDP): 6 W
  • Scenario Design Power (SDP) [Szenarienbildungslösung]: 4 W
  • Tjunction: 105 °C
  • PCI-Express-Slots-Version: 2.0
  • Maximale Anzahl der PCI-Express-Lanes: 6
  • PCI Express Konfigurationen: 1x2+2x1, 4x1
  • Anzahl installierter Prozessoren: 1
  • Maximaler interner Speicher, vom Prozessor unterstützt: 8 GB
  • Speichertypen, vom Prozessor unterstützt: LPDDR4-SDRAM, DDR3L-SDRAM, LPDDR3-SDRAM
  • Speichertaktraten, vom Prozessor unterstützt: 1866,2400 MHz

Speicher

  • RAM-Speicher: 4 GB
  • RAM-Speicher maximal: 4 GB
  • Interner Speichertyp: LPDDR3-SDRAM
  • ECC: Nein
  • Speicherkanäle: Zweikanalig

Anschlüsse und Schnittstellen

  • Anzahl USB 2.0 Anschlüsse: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 2
  • Anzahl HDMI-Anschlüsse: 1
  • DVI Anschluss: Nein
  • HDMI-Version: 2.0
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
  • Mikrofon-Eingang: Nein
  • Line-out: Ja
  • Gleichstrom-Anschluss (DC): Ja
  • M.2-Kartenslot (kabellos): 2230 (E-key)
  • M. 2-Karten-Slot (Speicher): 2280 (M-key)
  • Serielles Port via internem Header: Ja
  • Ein-/Ausschalter: Ja
  • Grafischer Ausgang: HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4

Gewicht und Abmessungen

  • Breite: 154 mm
  • Tiefe: 108 mm
  • Höhe: 32 mm

Leistung

  • DC input Spannung: 12 - 24 V

Netzwerk

  • Eingebauter Ethernet-Anschluss: Ja
  • WLAN: Ja
  • Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s
  • Verkabelungstechnologie: 10/100/1000Base-T(X)
  • LAN-Controller: Intel® I211-AT
  • Top WLAN-Standard: Wi-Fi 5 (802.11ac)
  • WLAN-Standards: Wi-Fi 5 (802.11ac)
  • Wi-Fi Datenrate (max): 433 Mbit/s
  • WLAN-Controllermodell: Intel Dual Band Wireless-AC 3168
  • Antennentyp: 1x1
  • Bluetooth: Ja
  • Bluetooth-Version: 4.2

Speichermedium

  • Gesamtspeicherkapazität: 64 GB
  • Optisches Laufwerk - Typ: Nein
  • Speichermedien: eMMC
  • Integrierter Kartenleser: Nein
  • SSD-Formfaktor: M.2
  • Integrierte Speicherkapazität: 65536 MB

Software

  • Kompatible Betriebssysteme: Windows 10, 64-bit*

Lieferumfang

  • Anzeige enthalten: Nein
  • Netzkabel enthalten: Ja
  • Prozessor enthalten: Intel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz)

Sonstige Funktionen

  • Formfaktor: 3.5” SBC (146mm x 101.6mm)
  • Anzahl der Display unterstützt: 2
  • ARK ID: 190736
  • Anzahl der USB-Anschlüsse: 4
  • Zusätzliche Kopfzeilen: Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
  • Exportkontroll-Klassifizierungsnummer (ECCN): 5A992C
  • Warenklassifizierungssystem zur automatisierten Nachverfolgung (CCATS): G157815L2

Design

  • Gehäusetyp: mini PC
  • Produktfarbe: Schwarz
  • Intel® vPro™ Platform Eligibility: Nein

Grafik

  • Separater Grafikadapter: Nein
  • Eingebaute Grafikadapter: Nein
  • Dediziertes Grafikadaptermodell: Nicht verfügbar
  • On-Board Grafikadaptermodell: Intel® HD Graphics 500
  • On-Board Grafikadapter Basisfrequenz: 200 MHz
  • On-Board Grafikadapter Burstfrequenz: 650 MHz
  • Maximale dynamische Frequenz der On-Board Grafikadapter: 650 MHz
  • Maximaler integrierter Grafik-Adapterspeicher: 8 GB
  • Anzahl an unterstützen Displays (On-Board-Grafik): 3
  • On-Board Grafikadapter Geräte-ID: 0x5A85
  • Anzahl der Rechenwerke: 12

Prozessor Besonderheiten

  • Intel® Small-Business-Advantage (Intel® SBA): Nein
  • Intel® Wireless-Display (Intel® WiDi): Nein
  • Intel HD-Audio-Technik: Ja
  • Intel® 64: Ja
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Eingebettete Optionen verfügbar: Ja
  • Intel® InTru™ 3D Technologie: Nein
  • Intel® Insider™: Nein
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Clear Video Technologie: Ja
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Intel Stable Image Platform Program (SIPP): Nein
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Intel® Sicherer Schlüssel: Ja
  • Intel® OS Guard: Ja
  • Intel® Trusted-Execution-Technik: Nein
  • Execute Disable Bit: Ja
  • Intel® Enhanced Halt State: Ja
  • Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID): Ja
  • Prozessor-Paketgröße: 24 x 31 mm
  • CPU Konfiguration (max): 1
  • UART: Ja
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® Smart-Idle-Technik: Nein
  • Intel® Secure Boot: Ja
  • Intel® Smart Connect Technologieversion: 0,00
  • Intel® Identity Protection Technologieversion: 1,00
  • Intel® Secure Boot Technologieversion: 1,00
  • Intel® Stable Image Platform Program (SIPP) Version: 0,00
  • Intel® Secure Key Technologieversion: 1,00
  • Intel® Virtualization Technologie (VT-X): Ja
  • Intel® Small Business Advantage (SBA) Version: 0,00
  • Intel® Smart Response Technologieversion: 0,00
  • Intel® Rapid-Storage-Technik: Nein
  • ARK Prozessorerkennung: 95598
  • Intel® Platform Trust Technology (Intel® PTT): Ja
  • Intel® Smart-Response-Technologie: Nein
  • Intel® Turbo-Boost-Technologie: Nein
  • Intel® Smart-Connect-Technik: Nein
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Nein
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja
  • Intel® Anti-Theft Technologie (Intel® AT): Nein
  • Konfliktloser-Prozessor: Ja

Leistungen

  • Produkttyp: Mini-PC
  • Motherboardformfaktor: NUC
  • Trusted Platform Module (TPM): Nein
  • Status: Launched

Logistikdaten

  • Warentarifnummer (HS): 8471500150

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
