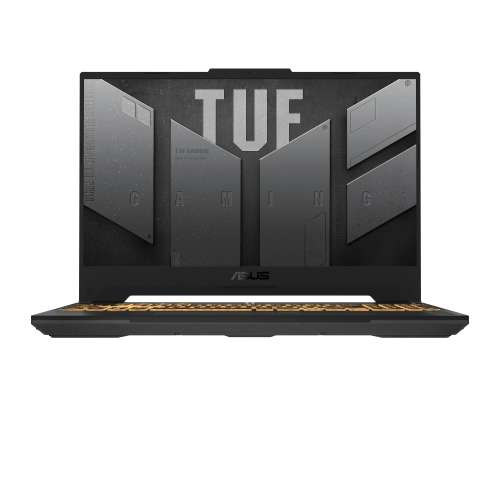

ASUS TUF Gaming F15 TUF507ZV4-LP049W i7-12700H Notebook 39,6 cm (15.6 Zoll) Full HD Intel® Core™ i7 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6 (802.11ax) Windows 11 Home Schwarz, Grau
Hersteller-Nr.: 90NR0FA8-M002U0
Markteinführung: 01/2023
Produktserie: ASUS TUF Gaming F15
Hersteller: ASUS





Fakten in Kürze
ASUS TUF Gaming F15 TUF507ZV4-LP049W. Produkttyp: Notebook, Formfaktor: Klappgehäuse. Prozessorfamilie: Intel® Core™ i7, Prozessor: i7-12700H. Bildschirmdiagonale: 39,6 cm (15.6 Zoll), HD-Typ: Full HD, Display-Auflösung: 1920 x 1080 Pixel. RAM-Speicher: 16 GB, Interner Speichertyp: DDR5-SDRAM. Gesamtspeicherkapazität: 512 GB, Speichermedien: SSD. On-Board Grafikadaptermodell: Intel Iris Xe Graphics, Dediziertes Grafikadaptermodell: NVIDIA GeForce RTX 4060. Installiertes Betriebssystem: Windows 11 Home. Produktfarbe: Schwarz, Grau
Prozessor
- Prozessorfamilie: Intel® Core™ i7
- Prozessorhersteller: Intel
- Prozessor: i7-12700H
- Prozessorgeneration: Intel® Core™ i7 Prozessoren der 12. Generation
- Prozessor Boost-Frequenz: 4,7 GHz
- Anzahl Prozessorkerne: 14
- Prozessor-Cache: 24 MB
- TDP-down konfigurierbar: 35 W
Speicher
- RAM-Speicher: 16 GB
- RAM-Speicher maximal: 32 GB
- Interner Speichertyp: DDR5-SDRAM
- Speichertaktfrequenz: 4800 MHz
- Memory Formfaktor: SO-DIMM
- Speicherlayout: 2 x 8 GB
- Speicherkartensteckplätze: 2x SO-DIMM
Bildschirm
- Bildschirmdiagonale: 39,6 cm (15.6 Zoll)
- Display-Auflösung: 1920 x 1080 Pixel
- Touchscreen: Nein
- HD-Typ: Full HD
- Panel-Typ: IPS
- Natives Seitenverhältnis: 16:9
- Blendfreier Bildschirm: Ja
- Maximale Bildwiederholrate: 144 Hz
Audio
- Audio-System: Dolby Atmos
- Anzahl eingebauter Lautsprecher: 2
- Eingebautes Mikrofon: Ja
Anschlüsse und Schnittstellen
- USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 2
- Anzahl HDMI-Anschlüsse: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
- Anzahl USB4 Gen 2×2-Ports: 1
- Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
- HDMI-Version: 2.1
- Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
- USB-Typ-C DisplayPort-Wechselmodus: Ja
- USB Power Delivery: Ja
Gewicht und Abmessungen
- Gewicht: 2,2 kg
- Breite: 354 mm
- Tiefe: 251 mm
- Höhe (vorne): 2,24 cm
- Höhe (hinten): 2,49 cm
Leistung
- Netzteilstärke: 280 W
- Netzteilfrequenz: 50 - 60 Hz
- Netzteil Eingansgsspannung: 100 - 240 V
- AC-Adapter Ausgangssstrom: 14 A
- Netzteil Ausgangsspannung: 20 V
Tastatur
- Numerisches Keypad: Ja
- Eingabegerät: Touchpad
- Tastatur mit Hintergrundbeleuchtung: Ja
- Farbe der Tastaturhintergrundbeleuchtung: RGB
- Beleuchteter Bereich der Tastatur: 1-zone RGB
Netzwerk
- Mobile Netzwerkverbindung: Nein
- Top WLAN-Standard: Wi-Fi 6 (802.11ax)
- WLAN-Standards: Wi-Fi 6 (802.11ax)
- Antennentyp: 2x2
- Eingebauter Ethernet-Anschluss: Ja
- Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s
- Bluetooth: Ja
- Bluetooth-Version: 5.2
Speichermedium
- Gesamtspeicherkapazität: 512 GB
- Speichermedien: SSD
- Optisches Laufwerk - Typ: Nein
- Gesamtkapazität der SSDs: 512 GB
- Anzahl SSD installiert: 1
- SSD Speicherkapazität: 512 GB
- SSD Schnittstelle: PCI Express 4.0
- NVMe: Ja
- SSD-Formfaktor: M.2
Sicherheit
- Kabelsperre-Slot: Ja
- Slot-Typ Kabelsperre: Kensington
- Trusted Platform Module (TPM): Ja
- Passwortschutz: Ja
- Passwortschutz-Art: BIOS, Benutzer
Software
- Installiertes Betriebssystem: Windows 11 Home
- Betriebssystemsarchitektur: 64-Bit
Kamera
- Frontkamera: Ja
- Frontkamera HD Typ: HD
Akku/Batterie
- Batteriekapazität: 90 Wh
- Akku-/Batterietechnologie: Lithium-Ion (Li-Ion)
- Anzahl Batteriezellen: 4
Design
- Produkttyp: Notebook
- Produktfarbe: Schwarz, Grau
- Formfaktor: Klappgehäuse
- Marktpositionierung: Gaming
Grafik
- Eingebaute Grafikadapter: Ja
- Separater Grafikadapter: Ja
- Dediziertes Grafikadaptermodell: NVIDIA GeForce RTX 4060
- On-Board Grafikadaptermodell: Intel Iris Xe Graphics
- Getrennter GPU-Hersteller: NVIDIA
- Separater Grafik-Adapterspeicher: 8 GB
- Dedizierter Grafikspeicher Typ: GDDR6
Prozessor Besonderheiten
- Intel® Flex Memory Access: Ja
- Intel® Trusted-Execution-Technik: Ja
- Intel® VT-x mit Extended Page Tables (EPT): Ja
- Execute Disable Bit: Ja
- CPU Konfiguration (max): 1
- Eingebettete Optionen verfügbar: Nein
- Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
- Intel® Virtualization Technologie (VT-X): Ja

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
