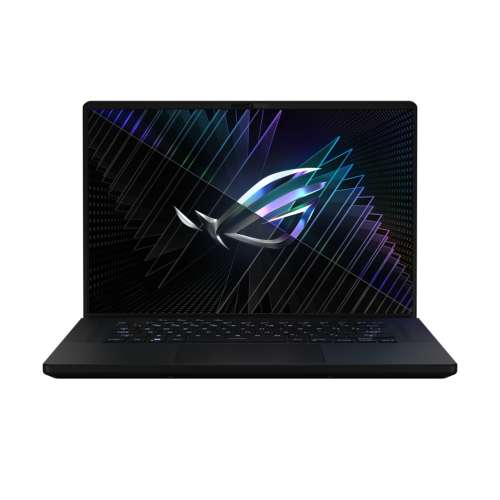

ASUS ROG Zephyrus M16 GU604VZ-NM008W i9-13900H Notebook 40,6 cm (16 Zoll) WQXGA Intel® Core™ i9 32 GB DDR5-SDRAM 1000 GB SSD NVIDIA GeForce RTX 4080 Wi-Fi 6E (802.11ax) Windows 11 Home Schwarz
Hersteller-Nr.: 90NR0BK3-M002B0
Markteinführung: 02/2023
Produktserie: ASUS ROG Zephyrus M16
Hersteller: ASUS












Fakten in Kürze
ASUS ROG Zephyrus M16 GU604VZ-NM008W. Produkttyp: Notebook, Formfaktor: Klappgehäuse. Prozessorfamilie: Intel® Core™ i9, Prozessor: i9-13900H. Bildschirmdiagonale: 40,6 cm (16 Zoll), HD-Typ: WQXGA, Display-Auflösung: 2560 x 1600 Pixel. RAM-Speicher: 32 GB, Interner Speichertyp: DDR5-SDRAM. Gesamtspeicherkapazität: 1000 GB, Speichermedien: SSD. On-Board Grafikadaptermodell: Intel Iris Xe Graphics, Dediziertes Grafikadaptermodell: NVIDIA GeForce RTX 4080. Installiertes Betriebssystem: Windows 11 Home. Produktfarbe: Schwarz
Prozessor
- Prozessorfamilie: Intel® Core™ i9
- Prozessorhersteller: Intel
- Prozessor: i9-13900H
- Prozessorgeneration: Intel® Core™ i9 Prozessoren der 13. Generation
- Prozessor Boost-Frequenz: 5,4 GHz
- Effiziente Kern-Boost-Frequenz: 4,1 GHz
- Anzahl Prozessorkerne: 14
- Prozessor-Cache: 24 MB
- Prozessor Cache Typ: Smart Cache
- TDP-down konfigurierbar: 35 W
- Grundleistung des Prozessors: 45 W
- Maximale Turboleistung: 115 W
Speicher
- RAM-Speicher: 32 GB
- RAM-Speicher maximal: 64 GB
- Interner Speichertyp: DDR5-SDRAM
- Speichertaktfrequenz: 4800 MHz
- Memory Formfaktor: SO-DIMM
- Speicherlayout: 2 x 16 GB
- Speicherkartensteckplätze: 2x SO-DIMM
Bildschirm
- Bildschirmdiagonale: 40,6 cm (16 Zoll)
- Display-Auflösung: 2560 x 1600 Pixel
- Touchscreen: Nein
- HD-Typ: WQXGA
- Panel-Typ: Mini-LED
- LED-Hintergrundbeleuchtung: Ja
- Natives Seitenverhältnis: 16:10
- Blendfreier Bildschirm: Ja
- RGB-Farbraum: DCI-P3
- Farbskala: 100%
- Anzeigeverhalten Steigerung/Senkung: 3 ms
- Maximale Bildwiederholrate: 240 Hz
- High Dynamic Range Video (HDR) Unterstützung: Ja
- Technologie mit hohem Dynamikbereich (HDR): Dolby Vision
Audio
- Audio-System: Dolby Atmos
- Eingebautes Mikrofon: Ja
- Mikrofonenanzahl: 3
Anschlüsse und Schnittstellen
- Anzahl HDMI-Anschlüsse: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
- HDMI-Version: 2.1
- Anzahl Thunderbolt 4-Ports: 1
- Intel® Thunderbolt 4: Ja
- Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
- Typ Ladeanschluss: DC-Anschluss
- Steckverbinder des Netzadapters: 6.0 mm
- USB-Typ-C DisplayPort-Wechselmodus: Ja
- USB Power Delivery: Ja
Gewicht und Abmessungen
- Gewicht: 2,1 kg
- Breite: 355 mm
- Tiefe: 246 mm
- Höhe (vorne): 1,99 cm
- Höhe (hinten): 2,23 cm
Leistung
- Netzteilstärke: 280 W
- Netzteilfrequenz: 50 - 60 Hz
- Netzteil Eingansgsspannung: 100 - 240 V
- AC-Adapter Ausgangssstrom: 14 A
- Netzteil Ausgangsspannung: 20 V
Tastatur
- Numerisches Keypad: Nein
- Eingabegerät: Touchpad
- Tastaturaufbau: AZERTY
- Tastatur mit Hintergrundbeleuchtung: Ja
- Farbe der Tastaturhintergrundbeleuchtung: RGB
Netzwerk
- Mobile Netzwerkverbindung: Nein
- Top WLAN-Standard: Wi-Fi 6E (802.11ax)
- WLAN-Standards: Wi-Fi 6E (802.11ax)
- Antennentyp: 2x2
- Bluetooth: Ja
- Bluetooth-Version: 5.2
Speichermedium
- Gesamtspeicherkapazität: 1000 GB
- Speichermedien: SSD
- Optisches Laufwerk - Typ: Nein
- Gesamtkapazität der SSDs: 1000 GB
- Anzahl SSD installiert: 1
- SSD Speicherkapazität: 1000 GB
- SSD Schnittstelle: PCI Express 4.0
- NVMe: Ja
- SSD-Formfaktor: M.2
- Integrierter Kartenleser: Ja
- Kompatible Speicherkarten: MicroSD (TransFlash)
Sicherheit
- Kabelsperre-Slot: Ja
- Slot-Typ Kabelsperre: Kensington
- Windows Hello: Ja
- Trusted Platform Module (TPM): Ja
- Passwortschutz: Ja
- Passwortschutz-Art: BIOS, Benutzer
Software
- Installiertes Betriebssystem: Windows 11 Home
- Betriebssystemsarchitektur: 64-Bit
- Testsoftware: 1-month trial for new Microsoft 365 customers
Kamera
- Frontkamera: Ja
- Frontkamera HD Typ: Full HD
- Infrarot (IR)-kamera: Ja
Akku/Batterie
- Batteriekapazität: 90 Wh
- Akku-/Batterietechnologie: Lithium-Ion (Li-Ion)
- Anzahl Batteriezellen: 4
- Schnellladung: Ja
- Schnellladezeit (50%): 30 min
Design
- Produkttyp: Notebook
- Produktfarbe: Schwarz
- Formfaktor: Klappgehäuse
- Name der Farbe: Off Black
- Marktpositionierung: Gaming
- Jahr der Einführung: 2023
Grafik
- Eingebaute Grafikadapter: Ja
- Separater Grafikadapter: Ja
- Dediziertes Grafikadaptermodell: NVIDIA GeForce RTX 4080
- On-Board Grafikadaptermodell: Intel Iris Xe Graphics
- Getrennter GPU-Hersteller: NVIDIA
- Separater Grafik-Adapterspeicher: 12 GB
- Dedizierter Grafikspeicher Typ: GDDR6
Prozessor Besonderheiten
- Intel® Flex Memory Access: Ja
- Intel® Trusted-Execution-Technik: Ja
- Intel® VT-x mit Extended Page Tables (EPT): Ja
- Intel Stable Image Platform Program (SIPP): Ja
- Execute Disable Bit: Ja
- CPU Konfiguration (max): 1
- Eingebettete Optionen verfügbar: Nein
- Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
- Intel® Virtualization Technologie (VT-X): Ja

Quelle der Daten: Icecat.biz.
