Home > Computer & Elektronik > Computer > Notebooks

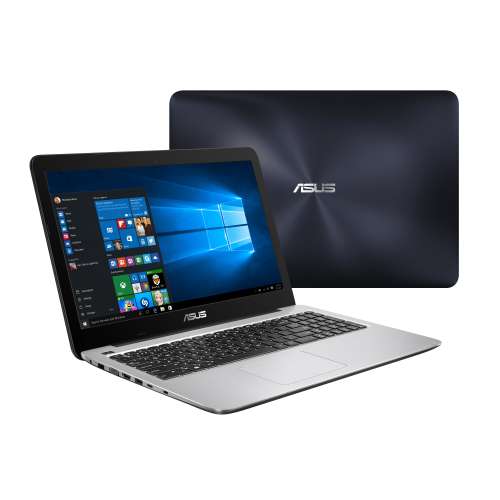

ASUS R558UV-DM193T i5-6200U Notebook 39,6 cm (15.6 Zoll) Full HD Intel® Core™ i5 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® 920MX Wi-Fi 4 (802.11n) Windows 10 Home Blau, Silber

Hersteller-Nr.: 90NB0BG2-M02580
Markteinführung: 08/2016
Hersteller: ASUS

Intel® Core™ i5 i5-6200U16 GB RAM256 GB SSD 39,6 cm (15.6 Zoll) Bildschirm



Fakten in Kürze

ASUS R558UV-DM193T. Produkttyp: Notebook, Formfaktor: Klappgehäuse. Prozessorfamilie: Intel® Core™ i5, Prozessor: i5-6200U, Prozessor-Taktfrequenz: 2,3 GHz. Bildschirmdiagonale: 39,6 cm (15.6 Zoll), HD-Typ: Full HD, Display-Auflösung: 1920 x 1080 Pixel. RAM-Speicher: 8 GB, Interner Speichertyp: DDR4-SDRAM. Gesamtspeicherkapazität: 256 GB, Speichermedien: SSD, Optisches Laufwerk - Typ: DVD Super Multi DL. Installiertes Betriebssystem: Windows 10 Home. Produktfarbe: Blau, Silber


Prozessor

  • Prozessorfamilie: Intel® Core™ i5
  • Prozessorhersteller: Intel
  • Prozessor: i5-6200U
  • Prozessor-Taktfrequenz: 2,3 GHz
  • Prozessorgeneration: Intel® Core™ i5 der sechsten Generation
  • Prozessor Boost-Frequenz: 2,8 GHz
  • Prozessor-Threads: 4
  • Systembus-Rate: 4 GT/s
  • Anzahl Prozessorkerne: 2
  • Prozessor-Cache: 3 MB
  • Prozessor Cache Typ: Smart Cache
  • Prozessorsockel: LGA 1356 (Socket B2)
  • Prozessor Lithografie: 14 nm
  • Prozessorbetriebsmodi: 64-Bit
  • Prozessor-Serien: Intel Core i5-6200-Serie
  • Prozessor Codename: Skylake
  • Bus Typ: QPI
  • Stepping: D1
  • Thermal Design Power (TDP): 15 W
  • TDP-up Frequenz konfigurierbar: 2,4 GHz
  • TDP-up konfigurierbar: 25 W
  • TDP-down konfigurierbar: 7,5 W
  • TDP-down Frequenz konfigurierbar: 0,8 GHz
  • Tjunction: 100 °C
  • Maximale Anzahl der PCI-Express-Lanes: 12
  • PCI-Express-Slots-Version: 3.0
  • PCI Express Konfigurationen: 1x4, 4x1
  • ECC vom Prozessor unterstützt: Nein

Speicher

  • RAM-Speicher: 8 GB
  • RAM-Speicher maximal: 16 GB
  • Interner Speichertyp: DDR4-SDRAM

Bildschirm

  • Bildschirmdiagonale: 39,6 cm (15.6 Zoll)
  • Display-Auflösung: 1920 x 1080 Pixel
  • Touchscreen: Nein
  • HD-Typ: Full HD
  • LED-Hintergrundbeleuchtung: Ja
  • Natives Seitenverhältnis: 16:9
  • Display-Oberfläche: Matt

Audio

  • Eingebautes Mikrofon: Ja

Anschlüsse und Schnittstellen

  • Anzahl USB 2.0 Anschlüsse: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: 1
  • Anzahl HDMI-Anschlüsse: 1
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
  • DVI Anschluss: Nein
  • Anzahl VGA (D-Sub) Anschlüsse: 1
  • Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
  • Docking-Connector: Nein
  • Typ Ladeanschluss: DC-Anschluss
  • ExpressCard-Slot: Nein
  • CardBus PCMCIA Slot-Typ: Nein
  • SmartCard-Slot: Nein

Gewicht und Abmessungen

  • Gewicht: 2,3 kg
  • Breite: 382 mm
  • Tiefe: 256 mm
  • Höhe: 25,5 mm

Leistung

  • Netzteilstärke: 65 W
  • Netzteilfrequenz: 50 - 60 Hz
  • Netzteil Eingansgsspannung: 100 - 240 V
  • AC-Adapter Ausgangssstrom: 3,42 A
  • Netzteil Ausgangsspannung: 19 V

Tastatur

  • Numerisches Keypad: Ja
  • Eingabegerät: Touchpad
  • Full-size Tastatur: Ja
  • Windows Tasten: Ja

Netzwerk

  • Top WLAN-Standard: Wi-Fi 4 (802.11n)
  • WLAN: Ja
  • WLAN-Standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • Eingebauter Ethernet-Anschluss: Ja
  • Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s
  • Bluetooth: Ja
  • Bluetooth-Version: 4.0

Speichermedium

  • Gesamtspeicherkapazität: 256 GB
  • Speichermedien: SSD
  • Optisches Laufwerk - Typ: DVD Super Multi DL
  • SSD-Formfaktor: 2.5"
  • Integrierter Kartenleser: Ja
  • Kompatible Speicherkarten: SD

Software

  • Installiertes Betriebssystem: Windows 10 Home
  • Betriebssystemsarchitektur: 64-Bit

Kamera

  • Frontkamera: Ja

Akku/Batterie

  • Batteriekapazität: 38 Wh
  • Akku-/Batterietechnologie: Lithium Polymer (LiPo)
  • Anzahl Batteriezellen: 2

Design

  • Produkttyp: Notebook
  • Produktfarbe: Blau, Silber
  • Formfaktor: Klappgehäuse

Grafik

  • Eingebaute Grafikadapter: Ja
  • Separater Grafikadapter: Ja
  • Dediziertes Grafikadaptermodell: NVIDIA® GeForce® 920MX
  • On-Board Grafikadaptermodell: Intel® HD Graphics 520
  • On-Board-Grafikadapterfamilie: Intel® HD Graphics
  • On-Board Grafikadapter Basisfrequenz: 300 MHz
  • Maximale dynamische Frequenz der On-Board Grafikadapter: 1000 MHz
  • Maximaler integrierter Grafik-Adapterspeicher: 1,74 GB
  • On-Board Grafikadapter DirectX Version: 12.0
  • On-Board Grafikadapter OpenGL Version: 4.4
  • On-Board Grafikadapter Geräte-ID: 1916

Prozessor Besonderheiten

  • Intel® Wireless-Display (Intel® WiDi): Ja
  • Intel® My-WiFi-Technik (Intel® MWT): Ja
  • Intel® Smart-Response-Technologie: Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
  • Intel® Turbo-Boost-Technologie: 2.0
  • Intel® Small-Business-Advantage (Intel® SBA): Ja
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Clear Video Technologie: Ja
  • Intel® InTru™ 3D Technologie: Ja
  • Intel® Insider™: Ja
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® Flex Memory Access: Ja
  • Intel® Smart Cache: Ja
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Intel® Trusted-Execution-Technik: Nein
  • Intel® Enhanced Halt State: Ja
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Intel® Sicherer Schlüssel: Ja
  • Intel® TSX-NI: Nein
  • Intel Stable Image Platform Program (SIPP): Nein
  • Intel® OS Guard: Ja
  • Intel® Software Guard Extensions (Intel® SGX): Ja
  • Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID): Ja
  • Intel® 64: Ja
  • Execute Disable Bit: Ja
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Prozessor-Paketgröße: 42 X 24 mm
  • Unterstützte Befehlssätze: SSE4.1, SSE4.2, AVX 2.0
  • Prozessor-Code: SR2EY
  • CPU Konfiguration (max): 1
  • Eingebettete Optionen verfügbar: Nein
  • Graphics & IMC lithography: 14 nm
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® Identity Protection Technologieversion: 1,00
  • Intel® Smart Response Technologieversion: 1,00
  • Intel® Stable Image Platform Program (SIPP) Version: 0,00
  • Intel® Secure Key Technologieversion: 1,00
  • Intel® Small Business Advantage (SBA) Version: 1,00
  • Intel® TSX-NI-Version: 1,00
  • Intel® Virtualization Technologie (VT-X): Ja
  • ARK Prozessorerkennung: 88193
  • Konfliktloser-Prozessor: Ja

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
