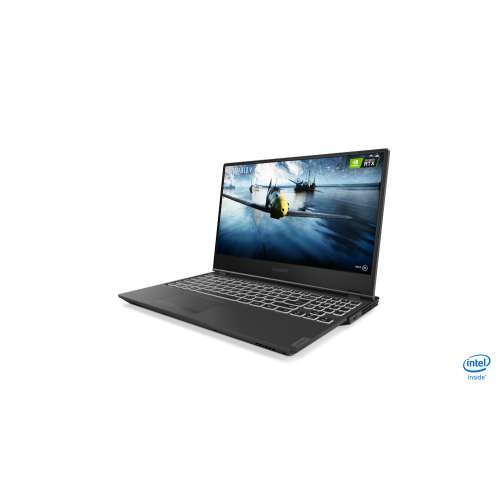

Lenovo Legion Y540 i5-9300H Notebook 39,6 cm (15.6 Zoll) Full HD Intel® Core™ i5 16 GB DDR4-SDRAM 1256 GB HDD+SSD NVIDIA® GeForce® GTX 1660 Ti Wi-Fi 5 (802.11ac) Windows 10 Home Schwarz

Hersteller-Nr.: 81SX004UGE
Markteinführung: 05/2019
Hersteller: Lenovo

Intel® Core™ i5 i5-9300H32 GB RAM1256 GB HDD+SSD 39,6 cm (15.6 Zoll) Bildschirm



Fakten in Kürze

Lenovo Legion Y540. Produkttyp: Notebook, Formfaktor: Klappgehäuse. Prozessorfamilie: Intel® Core™ i5, Prozessor: i5-9300H, Prozessor-Taktfrequenz: 2,4 GHz. Bildschirmdiagonale: 39,6 cm (15.6 Zoll), HD-Typ: Full HD, Display-Auflösung: 1920 x 1080 Pixel. RAM-Speicher: 16 GB, Interner Speichertyp: DDR4-SDRAM. Gesamtspeicherkapazität: 1256 GB, Speichermedien: HDD+SSD. On-Board Grafikadaptermodell: Intel® UHD Graphics 630. Installiertes Betriebssystem: Windows 10 Home. Produktfarbe: Schwarz


Prozessor

  • Prozessorfamilie: Intel® Core™ i5
  • Prozessorhersteller: Intel
  • Prozessor: i5-9300H
  • Prozessor-Taktfrequenz: 2,4 GHz
  • Prozessorgeneration: Intel® Core™ i5 der 9. Generation
  • Prozessor Boost-Frequenz: 4,1 GHz
  • Anzahl Prozessorkerne: 4
  • Prozessor-Threads: 8
  • Systembus-Rate: 8 GT/s
  • Prozessor-Cache: 8 MB
  • Prozessor Cache Typ: Smart Cache
  • Prozessorsockel: BGA 1440
  • Prozessor Lithografie: 14 nm
  • Prozessorbetriebsmodi: 64-Bit
  • Prozessor Codename: Coffee Lake
  • Thermal Design Power (TDP): 45 W
  • TDP-down konfigurierbar: 35 W
  • Tjunction: 100 °C
  • Maximale Anzahl der PCI-Express-Lanes: 16
  • PCI-Express-Slots-Version: 3.0
  • PCI Express Konfigurationen: 1x16, 2x8, 1x8+2x4

Speicher

  • RAM-Speicher: 16 GB
  • RAM-Speicher maximal: 32 GB
  • Interner Speichertyp: DDR4-SDRAM
  • Speichertaktfrequenz: 2666 MHz
  • Memory Formfaktor: SO-DIMM
  • Speicherlayout: 2 x 8 GB
  • Speicherkartensteckplätze: 2x SO-DIMM

Bildschirm

  • Bildschirmdiagonale: 39,6 cm (15.6 Zoll)
  • Display-Auflösung: 1920 x 1080 Pixel
  • Touchscreen: Nein
  • HD-Typ: Full HD
  • Panel-Typ: IPS
  • LED-Hintergrundbeleuchtung: Ja
  • Natives Seitenverhältnis: 16:9
  • Helligkeit: 300 cd/m²
  • Dualer Bildschirm: Nein

Audio

  • Audio-Chip: Realtek ALC3287
  • Anzahl eingebauter Lautsprecher: 2
  • Lautsprecher Hersteller: Harman Kardon
  • Lautsprecher Leistung: 2 W
  • Eingebautes Mikrofon: Ja
  • Mikrofonenanzahl: 2

Anschlüsse und Schnittstellen

  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: 1
  • Anzahl HDMI-Anschlüsse: 1
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
  • HDMI-Version: 2.0
  • Anzahl Mini DisplayPorts: 1
  • Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
  • Typ Ladeanschluss: DC-Anschluss
  • USB - Schlafen-und-Laden: Ja
  • USB-Ports - Schlafen-und-Laden: 1

Gewicht und Abmessungen

  • Gewicht: 2,3 kg
  • Breite: 360 mm
  • Tiefe: 267 mm
  • Höhe (vorne): 2,42 cm
  • Höhe (hinten): 2,59 cm

Leistung

  • Netzteilstärke: 230 W

Tastatur

  • Numerisches Keypad: Ja
  • Eingabegerät: Touchpad
  • Tastaturlayout: Deutsch
  • Tastatur mit Hintergrundbeleuchtung: Ja
  • Farbe der Tastaturhintergrundbeleuchtung: Weiß
  • Windows Tasten: Ja

Netzwerk

  • Top WLAN-Standard: Wi-Fi 5 (802.11ac)
  • WLAN: Ja
  • WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • Antennentyp: 2x2
  • Eingebauter Ethernet-Anschluss: Ja
  • Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s
  • Bluetooth: Ja
  • Bluetooth-Version: 4.2
  • WWAN: Not installed

Speichermedium

  • Gesamtspeicherkapazität: 1256 GB
  • Speichermedien: HDD+SSD
  • Optisches Laufwerk - Typ: Nein
  • Gesamtkapazität der HDDs: 1000 GB
  • Anzahl der installierten HDDs: 1
  • HDD Kapazität: 1000 GB
  • HDD Schnittstelle: SATA III
  • HDD Geschwindigkeit: 7200 RPM
  • HDD Größe: 2.5 Zoll
  • Gesamtkapazität der SSDs: 256 GB
  • Anzahl SSD installiert: 1
  • SSD Speicherkapazität: 256 GB
  • SSD Schnittstelle: NVMe, PCI Express
  • NVMe: Ja
  • SSD-Formfaktor: M.2
  • Integrierter Kartenleser: Nein

Sicherheit

  • Kabelsperre-Slot: Ja
  • Fingerabdruckscanner: Nein
  • Trusted Platform Module (TPM): Ja
  • Passwortschutz: Ja
  • Passwortschutz-Art: HDD, Einschalten, Supervisor

Zertifikate

  • Zertifizierung: ErP lot 3

Software

  • Installiertes Betriebssystem: Windows 10 Home
  • Betriebssystemsarchitektur: 64-Bit

Kamera

  • Frontkamera: Ja
  • Auflösung Frontkamera (numerisch): 1 MP
  • Frontkamera Signalformat: 720p
  • Frontkamera HD Typ: HD
  • Autofokus: Nein

Akku/Batterie

  • Batteriekapazität: 57 Wh
  • Akku-/Batterietechnologie: Lithium Polymer (LiPo)
  • Akku-/Batteriebetriebsdauer: 5 h

Sonstige Funktionen

  • AC-Netzadapter: Ja
  • 3D: Nein
  • RAM-Speicher maximal (64-bit): 32 GB

Design

  • Produkttyp: Notebook
  • Produktfarbe: Schwarz
  • Formfaktor: Klappgehäuse
  • Gehäusematerial: Acrylnitril-Butadien-Styrol (ABS)
  • Marktpositionierung: Gaming

Grafik

  • Eingebaute Grafikadapter: Ja
  • Separater Grafikadapter: Ja
  • Dediziertes Grafikadaptermodell: NVIDIA® GeForce® GTX 1660 Ti
  • On-Board Grafikadaptermodell: Intel® UHD Graphics 630
  • On-Board-Grafikadapterfamilie: Intel® UHD Graphics
  • On-Board Grafikadapter Basisfrequenz: 350 MHz
  • Maximale dynamische Frequenz der On-Board Grafikadapter: 1050 MHz
  • Maximaler integrierter Grafik-Adapterspeicher: 64 GB
  • On-Board Grafikadapter DirectX Version: 12.0
  • On-Board Grafikadapter OpenGL Version: 4.5
  • On-Board Grafikadapter Geräte-ID: 0x3E9B
  • Separater Grafik-Adapterspeicher: 6 GB
  • Dedizierter Grafikspeicher Typ: GDDR6

Prozessor Besonderheiten

  • Intel® My-WiFi-Technik (Intel® MWT): Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
  • Intel® Turbo-Boost-Technologie: 2.0
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Clear Video Technologie: Ja
  • Intel® InTru™ 3D Technologie: Ja
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® Flex Memory Access: Ja
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Intel® Trusted-Execution-Technik: Nein
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Intel® Sicherer Schlüssel: Ja
  • Intel® TSX-NI: Nein
  • Intel Stable Image Platform Program (SIPP): Nein
  • Intel® OS Guard: Ja
  • Intel® Software Guard Extensions (Intel® SGX): Ja
  • Intel® 64: Ja
  • Execute Disable Bit: Ja
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Prozessor-Paketgröße: 42 x 28 mm
  • Unterstützte Befehlssätze: SSE4.1, SSE4.2, AVX 2.0
  • CPU Konfiguration (max): 1
  • Eingebettete Optionen verfügbar: Nein
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® Virtualization Technologie (VT-X): Ja
  • ARK Prozessorerkennung: 191075

Nachhaltigkeit

  • Nachhaltigkeitszertifikate: RoHS

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
