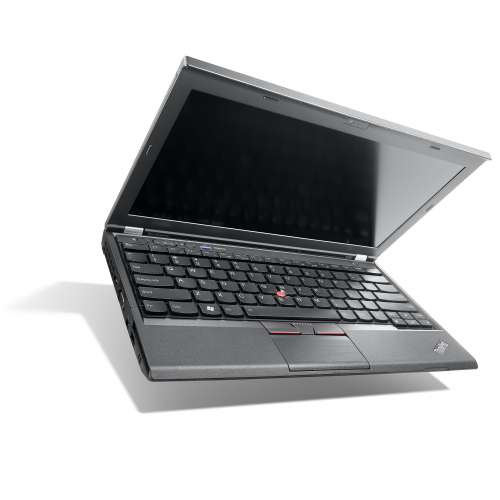

Lenovo ThinkPad X230 i5-3210M Notebook 31,8 cm (12.5 Zoll) Intel® Core™ i5 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Schwarz
Hersteller-Nr.: 232032U-RFB
Markteinführung: 07/2016
Produktserie: Lenovo ThinkPad X
Hersteller: Lenovo














Fakten in Kürze
Lenovo ThinkPad X230. Produkttyp: Notebook, Formfaktor: Klappgehäuse. Prozessorfamilie: Intel® Core™ i5, Prozessor: i5-3210M, Prozessor-Taktfrequenz: 2,5 GHz. Bildschirmdiagonale: 31,8 cm (12.5 Zoll), Display-Auflösung: 1366 x 768 Pixel. RAM-Speicher: 4 GB, Interner Speichertyp: DDR3-SDRAM. Gesamtspeicherkapazität: 500 GB, Speichermedien: HDD. On-Board Grafikadaptermodell: Intel® HD Graphics 4000. Installiertes Betriebssystem: Windows 7 Professional. Produktfarbe: Schwarz. Gewicht: 1,5 kg
Prozessor
- Prozessorfamilie: Intel® Core™ i5
- Prozessorhersteller: Intel
- Prozessor: i5-3210M
- Prozessor-Taktfrequenz: 2,5 GHz
- Prozessorgeneration: Intel® Core™ i5 der dritten Generation
- Prozessor Boost-Frequenz: 3,1 GHz
- Anzahl Prozessorkerne: 2
- Prozessor-Threads: 4
- Systembus-Rate: 5 GT/s
- Prozessor-Cache: 3 MB
- Prozessor Cache Typ: Smart Cache
- Prozessorsockel: BGA 1023
- Prozessor Lithografie: 22 nm
- Prozessorbetriebsmodi: 64-Bit
- Prozessor-Serien: Intel Core i5-3200 Mobile series
- Prozessor Codename: Ivy Bridge
- Bus Typ: DMI
- FSB Gleichwertigkeit: Nein
- Stepping: L1
- Motherboard Chipsatz: Intel® QM77 Express
- Thermal Design Power (TDP): 35 W
- Tjunction: 105 °C
- Maximale Anzahl der PCI-Express-Lanes: 16
- PCI-Express-Slots-Version: 3.0
- PCI Express Konfigurationen: 1x16, 2x8, 1x8+2x4
- CPU-Multiplikator (Bus-/Kernverhältnis): 25
- ECC vom Prozessor unterstützt: Nein
Speicher
- RAM-Speicher: 4 GB
- RAM-Speicher maximal: 16 GB
- Interner Speichertyp: DDR3-SDRAM
- Speichertaktfrequenz: 1600 MHz
- Speicherkartensteckplätze: 2x SO-DIMM
Bildschirm
- Bildschirmdiagonale: 31,8 cm (12.5 Zoll)
- Display-Auflösung: 1366 x 768 Pixel
- Touchscreen: Nein
- HD-Typ: Nicht unterstützt
- LED-Hintergrundbeleuchtung: Ja
- Natives Seitenverhältnis: 16:9
- Helligkeit: 200 cd/m²
- Dualer Bildschirm: Nein
- Kontrastverhältnis: 300:1
Audio
- Audio-System: HDA
- Anzahl eingebauter Lautsprecher: 2
- Lautsprecher Leistung: 1 W
- Eingebautes Mikrofon: Ja
Anschlüsse und Schnittstellen
- Anzahl USB 2.0 Anschlüsse: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 2
- Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
- Anzahl Mini DisplayPorts: 1
- DVI Anschluss: Nein
- Anzahl VGA (D-Sub) Anschlüsse: 1
- Kopfhörerausgänge: 1
- S/PDIF-Ausgang: Nein
- Mikrofon-Eingang: Ja
- Kombinierter Kopfhörer-/Mikrofon-Anschluss: Nein
- Docking-Connector: Nein
- Typ Ladeanschluss: DC-Anschluss
- ExpressCard-Slot: Ja
- CardBus PCMCIA Slot-Typ: Nein
- SmartCard-Slot: Nein
Gewicht und Abmessungen
- Gewicht: 1,5 kg
- Breite: 305 mm
- Tiefe: 206,5 mm
- Höhe (vorne): 1,9 cm
- Höhe (hinten): 2,66 cm
Leistung
- Netzteilfrequenz: 50 - 60 Hz
Tastatur
- Numerisches Keypad: Nein
- Eingabegerät: ThinkPad UltraNav
- Full-size Tastatur: Nein
- Tastatur - Tastenanzahl: 84
Netzwerk
- WLAN: Ja
- WLAN-Standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Wi-Fi Datenrate (max): 300 Mbit/s
- Eingebauter Ethernet-Anschluss: Ja
- Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s
- Bluetooth: Ja
- Bluetooth-Version: 4.0
- WWAN: Installed
Speichermedium
- Gesamtspeicherkapazität: 500 GB
- Speichermedien: HDD
- Optisches Laufwerk - Typ: Nein
- Anzahl der installierten HDDs: 1
- HDD Kapazität: 500 GB
- HDD Schnittstelle: SATA
- HDD Geschwindigkeit: 7200 RPM
- HDD Größe: 2.5 Zoll
- Integrierter Kartenleser: Ja
- Kompatible Speicherkarten: MMC, SD, SDHC, SDXC
Sicherheit
- Kabelsperre-Slot: Ja
- Slot-Typ Kabelsperre: Kensington
- Fingerabdruckscanner: Ja
- Trusted Platform Module (TPM): Ja
- Passwortschutz-Art: HDD, Einschalten, Supervisor
Software
- Installiertes Betriebssystem: Windows 7 Professional
- Betriebssystemsarchitektur: 64-Bit
Kamera
- Frontkamera: Ja
- Auflösung Frontkamera (numerisch): 1 MP
- Auflösung Frontkamera: 1280 x 720 Pixel
Akku/Batterie
- Batteriekapazität: 62,4 Wh
- Akku-/Batterietechnologie: Lithium-Ion (Li-Ion)
- Anzahl Batteriezellen: 6
- Akku-/Batteriebetriebsdauer: 10,3 h
Sonstige Funktionen
- AC-Netzadapter: Ja
- LightScribe: Nein
- Schwenkbare Webcam: Nein
Design
- Produkttyp: Notebook
- Produktfarbe: Schwarz
- Formfaktor: Klappgehäuse
- Gehäusematerial: Magnesium
Grafik
- Eingebaute Grafikadapter: Ja
- Separater Grafikadapter: Nein
- Dediziertes Grafikadaptermodell: Nicht verfügbar
- On-Board Grafikadaptermodell: Intel® HD Graphics 4000
- On-Board-Grafikadapterfamilie: Intel® HD Graphics
- On-Board Grafikadapter Basisfrequenz: 650 MHz
- Maximale dynamische Frequenz der On-Board Grafikadapter: 1100 MHz
- On-Board Grafikadapter Geräte-ID: 0x166
Prozessor Besonderheiten
- Intel® Wireless-Display (Intel® WiDi): Ja
- Intel® My-WiFi-Technik (Intel® MWT): Ja
- Intel® Anti-Theft Technologie (Intel® AT): Ja
- Intel® Identity-Protection-Technologie (Intel® IPT): Ja
- Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
- Intel® Turbo-Boost-Technologie: 2.0
- Verbesserte Intel SpeedStep Technologie: Ja
- Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
- Intel® Clear Video Technologie: Nein
- Intel® InTru™ 3D Technologie: Ja
- Intel® Insider™: Ja
- Intel® Quick-Sync-Video-Technik: Ja
- Intel® Flex Memory Access: Ja
- Intel® Smart Cache: Ja
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted-Execution-Technik: Nein
- Intel® Enhanced Halt State: Ja
- Intel® VT-x mit Extended Page Tables (EPT): Ja
- Intel® Demand Based Switching: Nein
- Intel® Sicherer Schlüssel: Ja
- Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID): Nein
- Intel® 64: Ja
- Execute Disable Bit: Ja
- Leerlauf Zustände: Ja
- Thermal-Überwachungstechnologien: Ja
- Prozessor-Paketgröße: 31.0 x 24.0 (BGA1023)
- Unterstützte Befehlssätze: AVX
- Prozessor-Code: SR0N0
- CPU Konfiguration (max): 1
- Eingebettete Optionen verfügbar: Nein
- Graphics & IMC lithography: 22 nm
- Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
- Intel® Identity Protection Technologieversion: 1,00
- Intel® Secure Key Technologieversion: 1,00
- Intel® Virtualization Technologie (VT-X): Ja
- Intel® Dual Display Capable Technology: Ja
- Intel® FDI-Technik: Ja
- Intel® Rapid-Storage-Technik: Nein
- Intel® Fast Memory Access: Ja
- ARK Prozessorerkennung: 65708
- Konfliktloser-Prozessor: Ja
- 4G WiMAX integriert: Ja
Merkmale
- Bildertypenkarte:
Nachhaltigkeit
- Nachhaltigkeitszertifikate: RoHS, EPEAT Gold, ENERGY STAR
