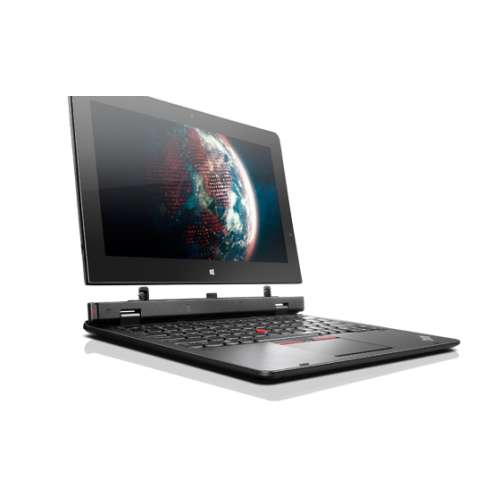

Lenovo ThinkPad Helix M-5Y71 Hybrid (2-in-1) 29,5 cm (11.6 Zoll) Touchscreen Full HD Intel® Core™ M 8 GB LPDDR3-SDRAM 512 GB SSD Wi-Fi 4 (802.11n) Windows 8.1 Pro Schwarz

Hersteller-Nr.: 20CG0019MD
Markteinführung: 01/2015
Produktserie: Lenovo ThinkPad Helix
Hersteller: Lenovo

Intel® Core™ M M-5Y718 GB RAM512 GB SSD 29,5 cm (11.6 Zoll) Bildschirm



Fakten in Kürze

Lenovo ThinkPad Helix. Produkttyp: Hybrid (2-in-1), Formfaktor: Austauschbar (Abnehmbar). Prozessorfamilie: Intel® Core™ M, Prozessor: M-5Y71, Prozessor-Taktfrequenz: 1,2 GHz. Bildschirmdiagonale: 29,5 cm (11.6 Zoll), HD-Typ: Full HD, Display-Auflösung: 1920 x 1080 Pixel, Touchscreen. RAM-Speicher: 8 GB, Interner Speichertyp: LPDDR3-SDRAM. Gesamtspeicherkapazität: 512 GB, Speichermedien: SSD. Mobilfunknetzgenerierung: 4G. Installiertes Betriebssystem: Windows 8.1 Pro


Prozessor

  • Prozessorfamilie: Intel® Core™ M
  • Prozessorhersteller: Intel
  • Prozessor: M-5Y71
  • Prozessor-Taktfrequenz: 1,2 GHz
  • Prozessorgeneration: Intel® Core™ M der fünften Generation
  • Prozessor Boost-Frequenz: 2,9 GHz
  • Anzahl Prozessorkerne: 2
  • Prozessor-Threads: 4
  • Prozessor-Cache: 4 MB
  • Prozessor Cache Typ: L3
  • Prozessorsockel: BGA 1234
  • Prozessor Lithografie: 14 nm
  • Prozessorbetriebsmodi: 32-bit, 64-Bit
  • Prozessor-Serien: Intel Core M-5Y Mobile series
  • Prozessor Codename: Broadwell
  • FSB Gleichwertigkeit: Nein
  • Stepping: F0
  • Thermal Design Power (TDP): 4,5 W
  • TDP-up Frequenz konfigurierbar: 1,4 GHz
  • TDP-up konfigurierbar: 6 W
  • TDP-down konfigurierbar: 3,5 W
  • TDP-down Frequenz konfigurierbar: 0,6 GHz
  • Scenario Design Power (SDP) [Szenarienbildungslösung]: 3,5 W
  • Tjunction: 95 °C
  • Maximale Anzahl der PCI-Express-Lanes: 12
  • PCI-Express-Slots-Version: 2.0
  • PCI Express Konfigurationen: x1 (6), x2 (4), x4 (3)
  • ECC vom Prozessor unterstützt: Nein

Speicher

  • RAM-Speicher: 8 GB
  • RAM-Speicher maximal: 8 GB
  • Interner Speichertyp: LPDDR3-SDRAM
  • Speichertaktfrequenz: 1600 MHz
  • Memory Formfaktor: On-board

Bildschirm

  • Bildschirmdiagonale: 29,5 cm (11.6 Zoll)
  • Display-Auflösung: 1920 x 1080 Pixel
  • Touchscreen: Ja
  • HD-Typ: Full HD
  • Touch-Technologie: Multitouch
  • Panel-Typ: IPS
  • LED-Hintergrundbeleuchtung: Ja
  • Natives Seitenverhältnis: 16:9
  • Display-Oberfläche: Glanz
  • Helligkeit: 370 cd/m²
  • Kontrastverhältnis: 800:1

Audio

  • Audio-System: Dolby Home Theater v4
  • Anzahl eingebauter Lautsprecher: 2
  • Lautsprecher Leistung: 1,4 W
  • Eingebautes Mikrofon: Ja

Anschlüsse und Schnittstellen

  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 1
  • DVI Anschluss: Nein
  • Anzahl Micro HDMI Anschlüsse: 1
  • Kopfhörerausgänge: 1
  • S/PDIF-Ausgang: Nein
  • Mikrofon-Eingang: Nein
  • Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja
  • Docking-Connector: Ja
  • Typ Ladeanschluss: DC-Anschluss
  • ExpressCard-Slot: Nein
  • CardBus PCMCIA Slot-Typ: Nein
  • SmartCard-Slot: Nein
  • USB - Schlafen-und-Laden: Ja
  • USB-Ports - Schlafen-und-Laden: 1

Gewicht und Abmessungen

  • Gewicht: 1,35 kg
  • Breite: 301,1 mm
  • Tiefe: 215,6 mm
  • Höhe: 25,4 mm
  • Gewicht (Tablet-Modus): 822 g
  • Breite (Tablet-Modus): 30,1 cm
  • Tiefe (Tablet-Modus): 19,2 cm
  • Höhe (Tablet-Modus): 9,3 mm

Leistung

  • Netzteilstärke: 36 W
  • Netzteilfrequenz: 50 - 60 Hz
  • Netzteil Eingansgsspannung: 100 - 240 V

Tastatur

  • Numerisches Keypad: Nein
  • Eingabegerät: Touchpad
  • Tastatur mit Hintergrundbeleuchtung: Ja
  • Island-Stil Tastatur: Ja
  • Full-size Tastatur: Ja
  • Windows Tasten: Ja

Netzwerk

  • Mobile Netzwerkverbindung: Ja
  • Top WLAN-Standard: Wi-Fi 4 (802.11n)
  • Mobilfunknetzgenerierung: 4G
  • 2G-Standards: Edge, GPRS, GSM
  • 3G-Standards: HSPA
  • 4G-Standard: LTE
  • WLAN: Ja
  • WLAN-Standards: 802.11a, 802.11b, 802.11g
  • Eingebauter Ethernet-Anschluss: Nein
  • Bluetooth: Ja
  • Bluetooth-Version: 4.0
  • Nahfeldkommunikation (NFC): Ja
  • WWAN: Installed

Speichermedium

  • Gesamtspeicherkapazität: 512 GB
  • Speichermedien: SSD
  • Optisches Laufwerk - Typ: Nein
  • Anzahl SSD installiert: 1
  • SSD Speicherkapazität: 512 GB
  • SSD Schnittstelle: PCI Express
  • Integrierter Kartenleser: Ja
  • Kompatible Speicherkarten: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Sicherheit

  • Kabelsperre-Slot: Ja
  • Slot-Typ Kabelsperre: Kensington
  • Fingerabdruckscanner: Ja
  • Passwortschutz: Ja
  • Passwortschutz-Art: HDD, Einschalten, Supervisor

Zertifikate

  • WiFi-zertifiziert: Ja

Software

  • Installiertes Betriebssystem: Windows 8.1 Pro
  • Betriebssystemsarchitektur: 64-Bit
  • Testsoftware: Norton Internet Security
  • Mitgelieferte Software: Lenovo Support Lenovo Companion ThinkVantage System Update Lenovo Reach Hightail - Metro Amazon Kindle Nitro Pro Evernote Skype Rara Streaming Norton Studio

Kamera

  • Frontkamera: Ja
  • Auflösung Frontkamera (numerisch): 2 MP
  • Auflösung Frontkamera: 1920 x 1080 Pixel
  • Rückkamera: Ja
  • Auflösung Rückkamera (numerisch): 5 MP

Lieferumfang

  • Eingabestift: Ja
  • Betriebsanleitung: Ja
  • Garantiekarte: Ja
  • Netzkabel enthalten: Ja

Akku/Batterie

  • Batteriekapazität: 35 Wh
  • Akku-/Batterietechnologie: Lithium Polymer (LiPo)
  • Anzahl Batteriezellen: 2
  • Akku-/Batteriebetriebsdauer: 8 h

Sonstige Funktionen

  • AC-Netzadapter: Ja
  • LightScribe: Nein
  • 3D: Nein
  • RAM-Speicher maximal (64-bit): 8 GB
  • Intel® Virtualisierungstechnik (Intel® VT): VT-d, VT-x
  • Intel® Segmentkennzeichnung: Homeoffice, Kleines Unternehmen

Design

  • Produkttyp: Hybrid (2-in-1)
  • Produktfarbe: Schwarz
  • Formfaktor: Austauschbar (Abnehmbar)
  • Gehäusematerial: Aluminium
  • Marktpositionierung: Business

Grafik

  • Eingebaute Grafikadapter: Ja
  • Separater Grafikadapter: Nein
  • Dediziertes Grafikadaptermodell: Nicht verfügbar
  • On-Board Grafikadaptermodell: Intel® HD Graphics 5300
  • On-Board-Grafikadapterfamilie: Intel® HD Graphics
  • On-Board Grafikadapter Basisfrequenz: 300 MHz
  • Maximale dynamische Frequenz der On-Board Grafikadapter: 900 MHz
  • Maximaler integrierter Grafik-Adapterspeicher: 16 GB
  • On-Board Grafikadapter DirectX Version: 11.2
  • On-Board Grafikadapter Geräte-ID: 0x161E

Prozessor Besonderheiten

  • Intel® Wireless-Display (Intel® WiDi): Ja
  • Intel® My-WiFi-Technik (Intel® MWT): Nein
  • Intel® Smart-Connect-Technik: Nein
  • Intel® Anti-Theft Technologie (Intel® AT): Nein
  • Intel® Rapid-Start-Technologie: Nein
  • Intel® Smart-Response-Technologie: Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Ja
  • Intel® Turbo-Boost-Technologie: 2.0
  • Intel® Small-Business-Advantage (Intel® SBA): Ja
  • Intel® Matrix-Storage-Technik (Intel® MST): Nein
  • Intel HD-Audio-Technik: Nein
  • Intel® Active Management Technologie (Intel® AMT): Nein
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Clear Video Technologie: Nein
  • Intel® InTru™ 3D Technologie: Ja
  • Intel® Insider™: Ja
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® Flex Memory Access: Ja
  • Intel® Smart Cache: Ja
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Intel® Trusted-Execution-Technik: Ja
  • Intel® Enhanced Halt State: Ja
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Intel® Demand Based Switching: Nein
  • Intel® Sicherer Schlüssel: Ja
  • Intel® TSX-NI: Ja
  • Intel Stable Image Platform Program (SIPP): Ja
  • Intel® OS Guard: Ja
  • Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID): Nein
  • Intel® 64: Ja
  • Execute Disable Bit: Ja
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Prozessor-Paketgröße: 30 x 16.5 mm
  • Unterstützte Befehlssätze: AVX 2.0, SSE4.1, SSE4.2
  • Prozessor-Code: SR23Q
  • CPU Konfiguration (max): 1
  • Eingebettete Optionen verfügbar: Nein
  • Graphics & IMC lithography: 14 nm
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® Identity Protection Technologieversion: 1,00
  • Intel® Smart Response Technologieversion: 1,00
  • Intel® Stable Image Platform Program (SIPP) Version: 1,00
  • Intel® Secure Key Technologieversion: 1,00
  • Intel® Small Business Advantage (SBA) Version: 1,00
  • Intel® TSX-NI-Version: 1,00
  • Intel® Virtualization Technologie (VT-X): Ja
  • Intel® Dual Display Capable Technology: Nein
  • Intel® FDI-Technik: Ja
  • Intel® Rapid-Storage-Technik: Nein
  • Intel® Fast Memory Access: Ja
  • ARK Prozessorerkennung: 84672
  • Konfliktloser-Prozessor: Ja

Leistungen

  • Beschleunigungsmesser: Ja
  • Annäherungssensor: Ja

Nachhaltigkeit

  • Nachhaltigkeitszertifikate: RoHS, EPEAT Gold, ENERGY STAR

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
