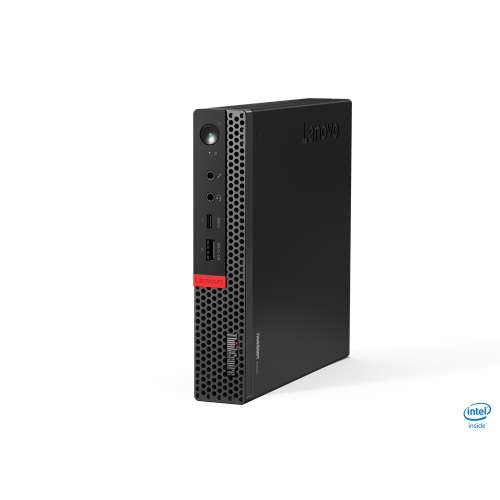

Lenovo ThinkSmart M920q Zoom Rooms i7-9700T mini PC Intel® Core™ i7 16 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Enterprise Mini-PC Schwarz

Hersteller-Nr.: 10T1000AEU
Markteinführung: 09/2020
Hersteller: Lenovo



Fakten in Kürze

Lenovo ThinkSmart M920q Zoom Rooms. Prozessor-Taktfrequenz: 2 GHz, Prozessorfamilie: Intel® Core™ i7, Prozessor: i7-9700T. RAM-Speicher: 16 GB, Interner Speichertyp: DDR4-SDRAM, Speichertaktfrequenz: 2666 MHz. Gesamtspeicherkapazität: 128 GB, Speichermedien: SSD. On-Board Grafikadaptermodell: Intel® UHD Graphics 630. Installiertes Betriebssystem: Windows 10 IoT Enterprise, Betriebssystemsarchitektur: 64-Bit. Stromversorgung: 135 W. Gehäusetyp: mini PC. Produkttyp: Mini-PC. Produktfarbe: Schwarz


Prozessor

  • Prozessorfamilie: Intel® Core™ i7
  • Prozessorhersteller: Intel
  • Prozessor: i7-9700T
  • Prozessor-Taktfrequenz: 2 GHz
  • Prozessorgeneration: Intel® Core™ i7 der 9. Generation
  • Anzahl Prozessorkerne: 8
  • Prozessor Boost-Frequenz: 4,3 GHz
  • Prozessorsockel: LGA 1151 (Socket H4)
  • Prozessor-Cache: 12 MB
  • Prozessor Cache Typ: Smart Cache
  • Prozessor-Threads: 8
  • Systembus-Rate: 8 GT/s
  • Prozessor Lithografie: 14 nm
  • Prozessorbetriebsmodi: 64-Bit
  • Prozessor Codename: Coffee Lake
  • Thermal Design Power (TDP): 35 W
  • TDP-down konfigurierbar: 25 W
  • TDP-down Frequenz konfigurierbar: 1,5 GHz
  • Tjunction: 100 °C
  • PCI-Express-Slots-Version: 3.0
  • Maximale Anzahl der PCI-Express-Lanes: 16
  • PCI Express Konfigurationen: 1x16, 2x8, 1x8+2x4
  • Anzahl installierter Prozessoren: 1
  • Maximaler interner Speicher, vom Prozessor unterstützt: 128 GB
  • Speichertypen, vom Prozessor unterstützt: DDR4-SDRAM
  • Speichertaktraten, vom Prozessor unterstützt: 2666 MHz
  • Durch den Prozessor (max) unterstützte Speicherbandbreite: 41,6 GB/s

Speicher

  • RAM-Speicher: 16 GB
  • RAM-Speicher maximal: 32 GB
  • Interner Speichertyp: DDR4-SDRAM
  • Speicherlayout: 2 x 8 GB
  • Speicherkartensteckplätze: 2x SO-DIMM
  • Speichertaktfrequenz: 2666 MHz

Anschlüsse und Schnittstellen

  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 2
  • Anzahl HDMI-Anschlüsse: 1
  • DVI Anschluss: Nein
  • Anzahl DisplayPort Anschlüsse: 1
  • Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
  • Mikrofon-Eingang: Ja
  • Kopfhörerausgänge: 1
  • Kombinierter Kopfhörer-/Mikrofon-Anschluss: Ja

Gewicht und Abmessungen

  • Breite: 179 mm
  • Tiefe: 182,9 mm
  • Höhe: 34,5 mm
  • Gewicht: 1,32 kg

Leistung

  • Stromversorgung: 135 W

Netzwerk

  • Eingebauter Ethernet-Anschluss: Ja
  • WLAN: Ja
  • Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s
  • Verkabelungstechnologie: 10/100/1000Base-T(X)
  • Top WLAN-Standard: Wi-Fi 5 (802.11ac)
  • WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • WLAN-Controllermodell: Intel Dual Band Wireless-AC 9560
  • Antennentyp: 2x2
  • Bluetooth: Ja
  • Bluetooth-Version: 5.0

Speichermedium

  • Gesamtspeicherkapazität: 128 GB
  • Optisches Laufwerk - Typ: Nein
  • Speichermedien: SSD
  • Integrierter Kartenleser: Nein
  • Anzahl der installierten Speicherlaufwerke: 1
  • Gesamtkapazität der SSDs: 128 GB
  • Anzahl SSD installiert: 1
  • SSD Speicherkapazität: 128 GB
  • SSD Schnittstelle: PCI Express
  • SSD-Formfaktor: M.2

Zertifikate

  • Zertifizierung: MIL-STD-810G

Software

  • Installiertes Betriebssystem: Windows 10 IoT Enterprise
  • Betriebssystemsarchitektur: 64-Bit

Lieferumfang

  • Anzeige enthalten: Nein
  • Maus enthalten: Ja
  • Tastatur enthalten: Ja
  • VESA-Halterung enthalten: Ja

Design

  • Gehäusetyp: mini PC
  • Produktfarbe: Schwarz
  • Volumen (l): 1 l
  • Unterstützung von Positionierung: Horizontal/Vertical
  • VESA-Halterung: Ja

Grafik

  • Separater Grafikadapter: Nein
  • Eingebaute Grafikadapter: Ja
  • Dediziertes Grafikadaptermodell: Nicht verfügbar
  • On-Board Grafikadaptermodell: Intel® UHD Graphics 630
  • On-Board Grafikadapter Basisfrequenz: 350 MHz
  • Maximale dynamische Frequenz der On-Board Grafikadapter: 1200 MHz
  • Maximaler integrierter Grafik-Adapterspeicher: 64 GB
  • Anzahl an unterstützen Displays (On-Board-Grafik): 3
  • On-Board Grafikadapter DirectX Version: 12.0
  • On-Board Grafikadapter OpenGL Version: 4.5
  • On-Board Grafikadapter Geräte-ID: 0x3E98

Prozessor Besonderheiten

  • Intel® 64: Ja
  • Verbesserte Intel SpeedStep Technologie: Ja
  • Eingebettete Optionen verfügbar: Nein
  • Intel® InTru™ 3D Technologie: Ja
  • Intel® Clear Video HD Technology für (Intel® CVT HD): Ja
  • Intel® Clear Video Technologie: Ja
  • Intel® VT-x mit Extended Page Tables (EPT): Ja
  • Intel® TSX-NI: Ja
  • Leerlauf Zustände: Ja
  • Thermal-Überwachungstechnologien: Ja
  • Intel Stable Image Platform Program (SIPP): Ja
  • Intel® AES New Instructions (Intel® AES-NI): Ja
  • Intel® Sicherer Schlüssel: Ja
  • Intel® OS Guard: Ja
  • Intel® Trusted-Execution-Technik: Ja
  • Execute Disable Bit: Ja
  • Intel® Software Guard Extensions (Intel® SGX): Ja
  • Prozessor-Paketgröße: 37.5 x 37.5 mm
  • Unterstützte Befehlssätze: SSE4.1, SSE4.2, AVX 2.0
  • Skalierbarkeit: 1S
  • CPU Konfiguration (max): 1
  • Spezifikation der thermischen Lösung: PCG 2015A
  • Intel® Virtualisierungstechnik für direkte I/O (VT-d): Ja
  • Intel® Virtualization Technologie (VT-X): Ja
  • ARK Prozessorerkennung: 191048
  • Intel® Turbo-Boost-Technologie: 2.0
  • Intel® Hyper-Threading-Technik (Intel® HT Technology): Nein
  • Intel® Quick-Sync-Video-Technik: Ja
  • Intel® Identity-Protection-Technologie (Intel® IPT): Ja

Leistungen

  • Produkttyp: Mini-PC
  • Motherboard Chipsatz: Intel Q370
  • Passwortschutz: Ja

Nachhaltigkeit

  • Nachhaltigkeitszertifikate: RoHS, ENERGY STAR

Quelle der Daten: Icecat.biz.
Die Daten sind vom Hersteller automatisiert übermittelt. Jegliche Haftung wird ausgeschlossen.
